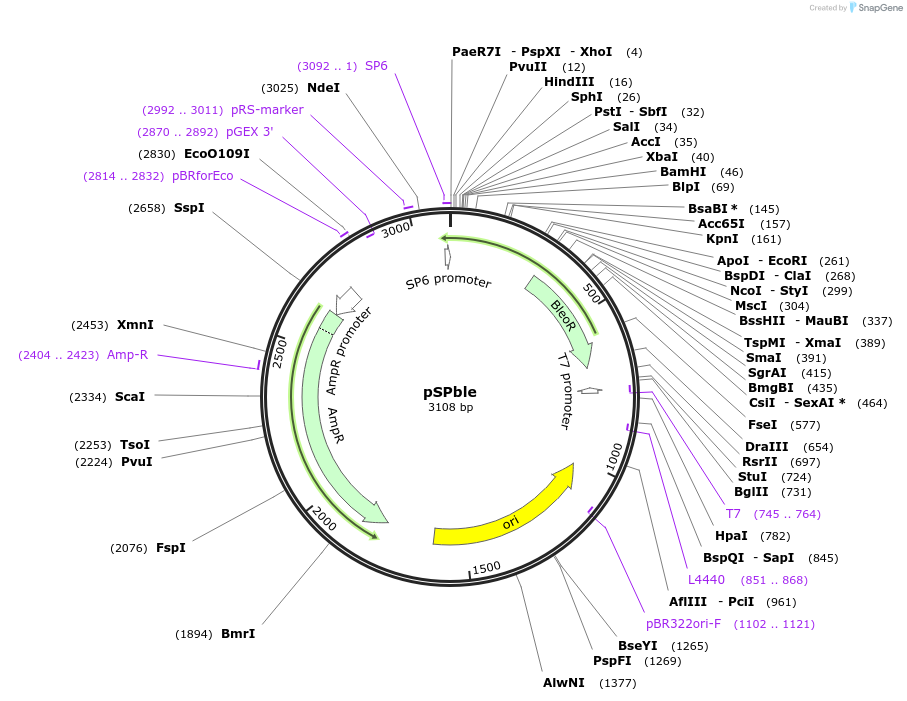

pSPble
(Plasmid #63561)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 63561 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSP72
  • Total vector size (bp) 3114
  • Vector type
    Leishmania Expression
  • Selectable markers
    Bleomycin or Phlemycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Bleomycin drug selection marker
  • Alt name
    ble
  • Insert Size (bp)
    680

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH I (not destroyed)
  • 3′ cloning site Bgl II (not destroyed)
  • 5′ sequencing primer SP6
  • 3′ sequencing primer T7
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This vector can be used as the PCR template to generate the ble expression cassette donor for gene disruption with CRISPR-CAS9

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSPble was a gift from Greg Matlashewski (Addgene plasmid # 63561 ; http://n2t.net/addgene:63561 ; RRID:Addgene_63561)

  • For your References section:

    CRISPR-Cas9-Mediated Genome Editing in Leishmania donovani. Zhang WW, Matlashewski G. MBio. 2015 Jul 21;6(4). pii: e00861-15. doi: 10.1128/mBio.00861-15. 10.1128/mBio.00861-15 PubMed 26199327
