pAN-AND
(Plasmid #62308)

• Purpose: synthetic circuit: AND gate
• Depositing Lab: Christopher Voigt
• Publication: Nielsen et al Mol Syst Biol. 2014 Nov 24;10:763. doi: 10.15252/msb.20145735.

Backbone

• Vector backbone: unknown
• Backbone size w/o insert (bp): 5341
• Vector type: Bacterial Expression, CRISPR

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert 1

• Gene/Insert name: A1NT sgRNA
• Species: Synthetic
• Promoter: pA4

Cloning Information for Gene/Insert 1

• Cloning method: Unknown
• 5′ sequencing primer: pQE promoter

Gene/Insert 2

• Gene/Insert name: A4NT sgRNA
• Species: Synthetic
• Promoter: PPhlF

Cloning Information for Gene/Insert 2

• Cloning method: Unknown
• 5′ sequencing primer: unknown

Gene/Insert 3

• Gene/Insert name: A2NT sgRNA
• Species: Synthetic
• Promoter: pBAD

Cloning Information for Gene/Insert 3

• Cloning method: Unknown
• 5′ sequencing primer: pBAD-F

Gene/Insert 4

• Gene/Insert name: A1NT
• Species: Synthetic
• Promoter: PA2

Cloning Information for Gene/Insert 4

• Cloning method: Unknown
• 5′ sequencing primer: unknown

Resource Information

• Supplemental Documents:

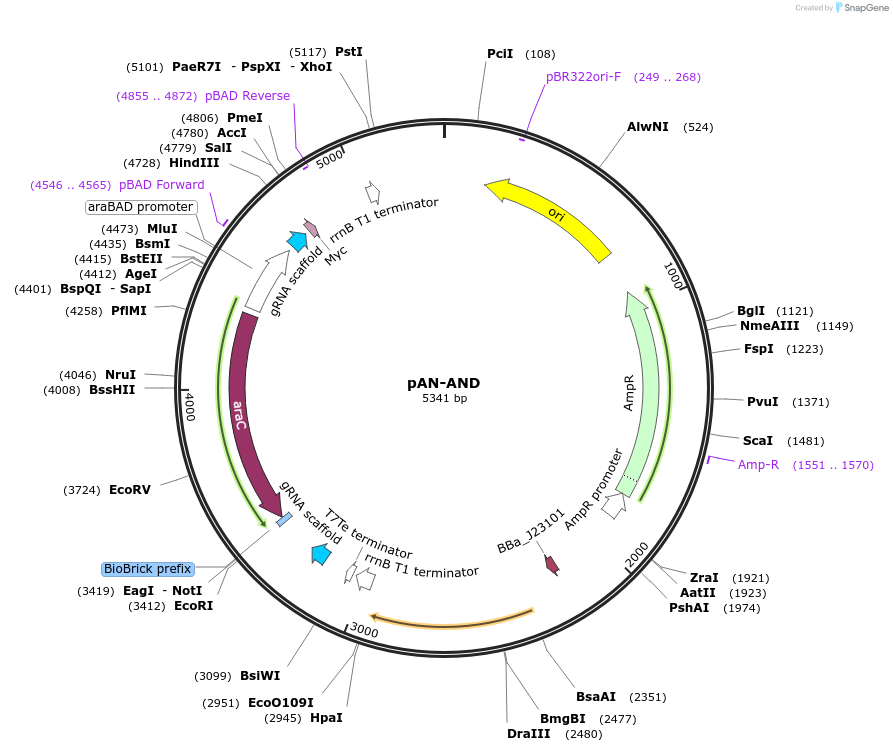

  • pAN-AND sequence file
