pcDNA3-ICUE3
(Plasmid #61622)

• Purpose: FRET-based biosensor for monitoring cAMP
• Depositing Lab: Jin Zhang
• Publication: DiPilato et al Mol Biosyst. 2009 Aug;5(8):832-7. doi: 10.1039/b823243a. Epub 2009 May 26.

Backbone

• Vector backbone: pcDNA3
• Backbone manufacturer: Invitrogen
• Backbone size w/o insert (bp): 5446
• Total vector size (bp): 9176
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: ICUE3
• Species: H. sapiens (human)
• Insert Size (bp): 3669
• Entrez Gene: RAPGEF3 (a.k.a. CAMP-GEFI, EPAC, EPAC1, HSU79275, bcm910)
• Promoter: CMV
• Tags / Fusion Proteins:
  • ECFP (N terminal on insert)
  • cpVenus[L194] (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: T7 forward
• 3′ sequencing primer: BGH reverse

Resource Information

• Supplemental Documents:

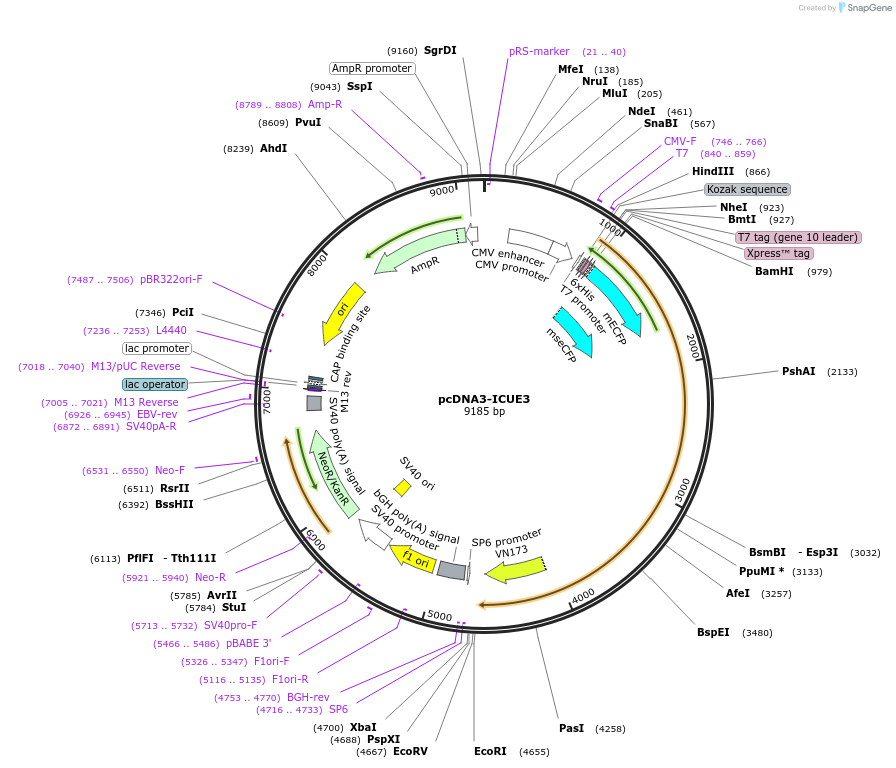

  • pcDNA3-ICUE3
• Articles Citing this Plasmid:
  • 6 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
