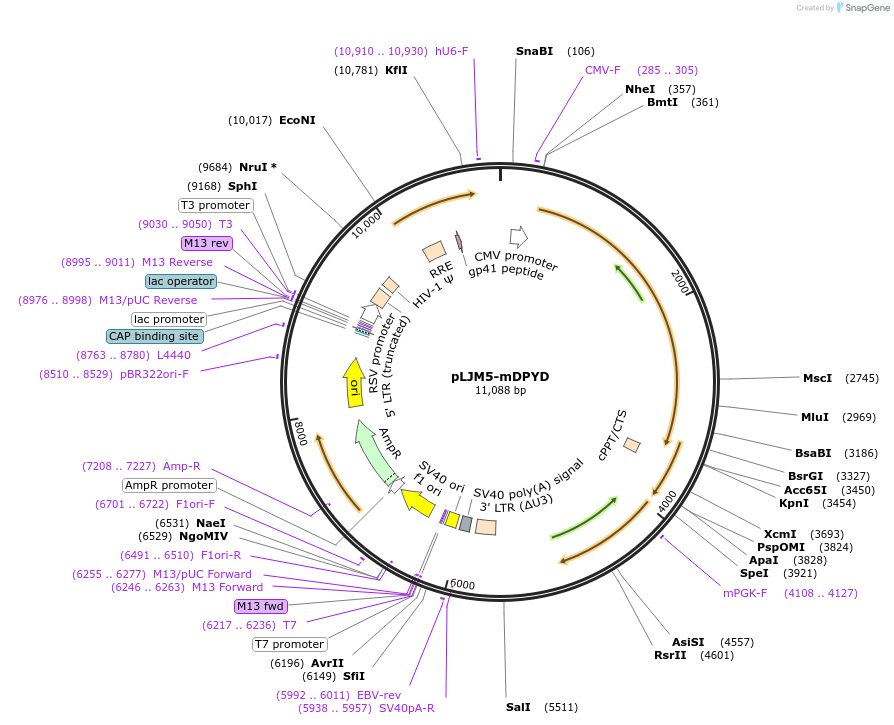

pLJM5-mDPYD
(Plasmid #61614)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 61614 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pLJM5
  • Backbone size w/o insert (bp) 8001
  • Total vector size (bp) 11079
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    dihydropyrimidine dehydrogenase
  • Alt name
    Dpyd
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    3078
  • GenBank ID
    NM_170778.2
  • Entrez Gene
    Dpyd (a.k.a. AI315208, DPD, E330028L06Rik)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NcoI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer TGTACGGTGGGAGGTCTATATAAG
  • 3′ sequencing primer CCCTTTTCTTTTAAAATTGTGGATGAATACTGCC
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Thermo Scientific Biochem Sciences (Catalog Number: 4235971)
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLJM5-mDPYD was a gift from David Sabatini (Addgene plasmid # 61614 ; http://n2t.net/addgene:61614 ; RRID:Addgene_61614)
  • For your References section:

    Dihydropyrimidine accumulation is required for the epithelial-mesenchymal transition. Shaul YD, Freinkman E, Comb WC, Cantor JR, Tam WL, Thiru P, Kim D, Kanarek N, Pacold ME, Chen WW, Bierie B, Possemato R, Reinhardt F, Weinberg RA, Yaffe MB, Sabatini DM. Cell. 2014 Aug 28;158(5):1094-109. doi: 10.1016/j.cell.2014.07.032. 10.1016/j.cell.2014.07.032 PubMed 25171410
