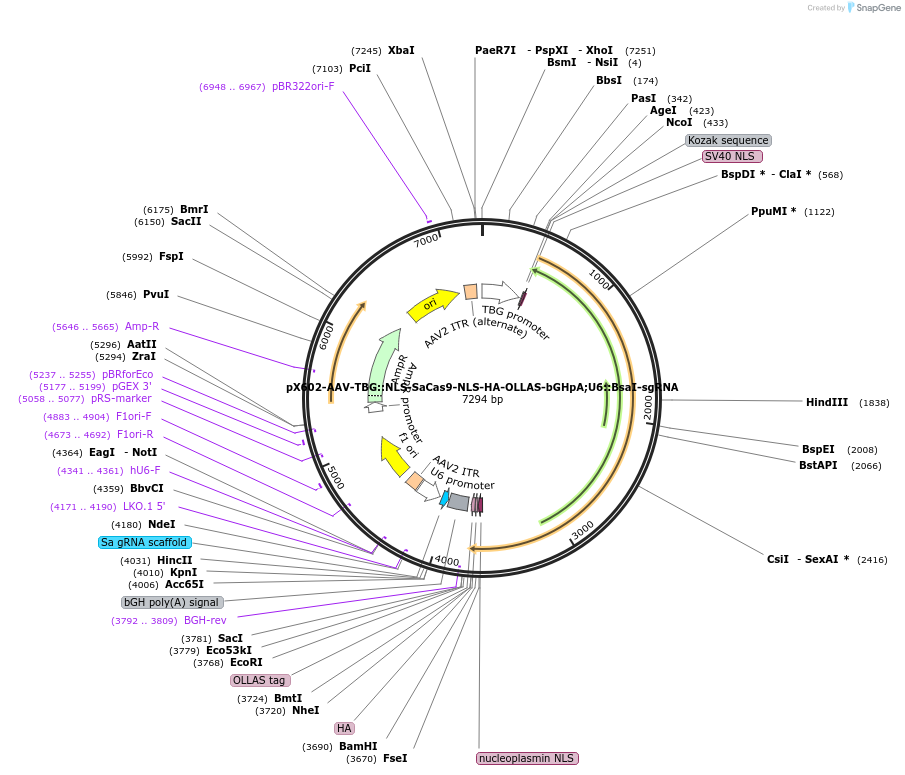

pX602-AAV-TBG::NLS-SaCas9-NLS-HA-OLLAS-bGHpA;U6::BsaI-sgRNA
(Plasmid #61593)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 61593 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAAV
  • Vector type
    Mammalian Expression, AAV, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    hSaCas9
  • Alt name
    hSauCas9
  • Species
    Staphylococcus aureus
  • Insert Size (bp)
    3345
  • GenBank ID
    CCK74173.1
  • Tags / Fusion Proteins
    • NLS (N terminal on insert)
    • NLS (C terminal on insert)
    • HA (C terminal on insert)
    • OLLAS tag (C terminal on insert)

Gene/Insert 2

  • Gene/Insert name
    Chimeric guide for SaCas9
  • Species
    Staphylococcus aureus
  • Insert Size (bp)
    101

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pX602-AAV-TBG::NLS-SaCas9-NLS-HA-OLLAS-bGHpA;U6::BsaI-sgRNA was a gift from Feng Zhang (Addgene plasmid # 61593 ; http://n2t.net/addgene:61593 ; RRID:Addgene_61593)
  • For your References section:

    In vivo genome editing using Staphylococcus aureus Cas9. Ran FA, Cong L, Yan WX, Scott DA, Gootenberg JS, Kriz AJ, Zetsche B, Shalem O, Wu X, Makarova KS, Koonin EV, Sharp PA, Zhang F. Nature. 2015 Apr 1. doi: 10.1038/nature14299. 10.1038/nature14299 PubMed 25830891
