pChimera
(Plasmid
#61476)
-
PurposeVector for conventional cloning that contains AtU6-26 promoter and sgRNA backbone
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 61476 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepMA-T
-
Backbone manufacturerGeneArt
- Backbone size w/o insert (bp) 2400
- Total vector size (bp) 2900
-
Vector typePlant Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameU6-26:sgRNA
-
SpeciesA. thaliana (mustard weed), Synthetic
-
Insert Size (bp)540
- Promoter U6-26
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer M13 fw
- 3′ sequencing primer M13 rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pChimera was a gift from Holger Puchta (Addgene plasmid # 61476 ; http://n2t.net/addgene:61476 ; RRID:Addgene_61476) -
For your References section:
Both CRISPR/Cas-based nucleases and nickases can be used efficiently for genome engineering in Arabidopsis thaliana. Fauser F, Schiml S, Puchta H. Plant J. 2014 Jul;79(2):348-59. doi: 10.1111/tpj.12554. Epub 2014 Jun 17. 10.1111/tpj.12554 PubMed 24836556

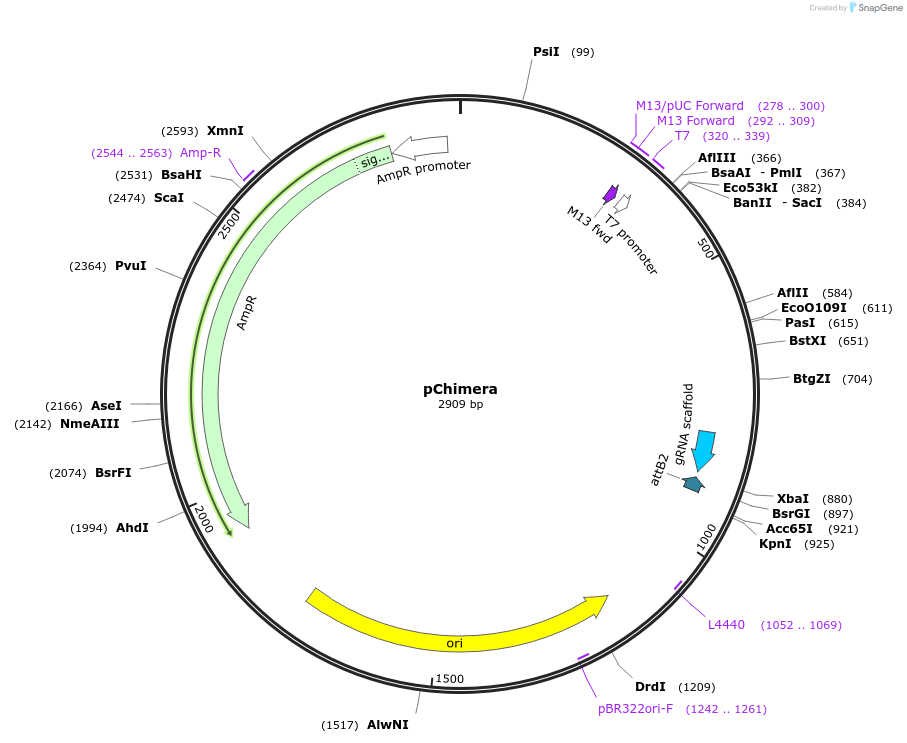

Map uploaded by the depositor.
