pcrRNA.con
(Plasmid
#61285)
-
Purpose(Empty Backbone) Constitutive repeat-only E. coli CRISPR array
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 61285 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBAD18
- Backbone size (bp) 3399
-
Vector typeBacterial Expression, CRISPR
- Promoter J23119
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer tgctcatgtttgacagcttatcatc
- 3′ sequencing primer GGCTGAAAATCTTCTCTCATCCGCC (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcrRNA.con was a gift from Chase Beisel (Addgene plasmid # 61285 ; http://n2t.net/addgene:61285 ; RRID:Addgene_61285) -
For your References section:
Repurposing endogenous type I CRISPR-Cas systems for programmable gene repression. Luo ML, Mullis AS, Leenay RT, Beisel CL. Nucleic Acids Res. 2014 Oct 17. pii: gku971. 10.1093/nar/gku971 PubMed 25326321

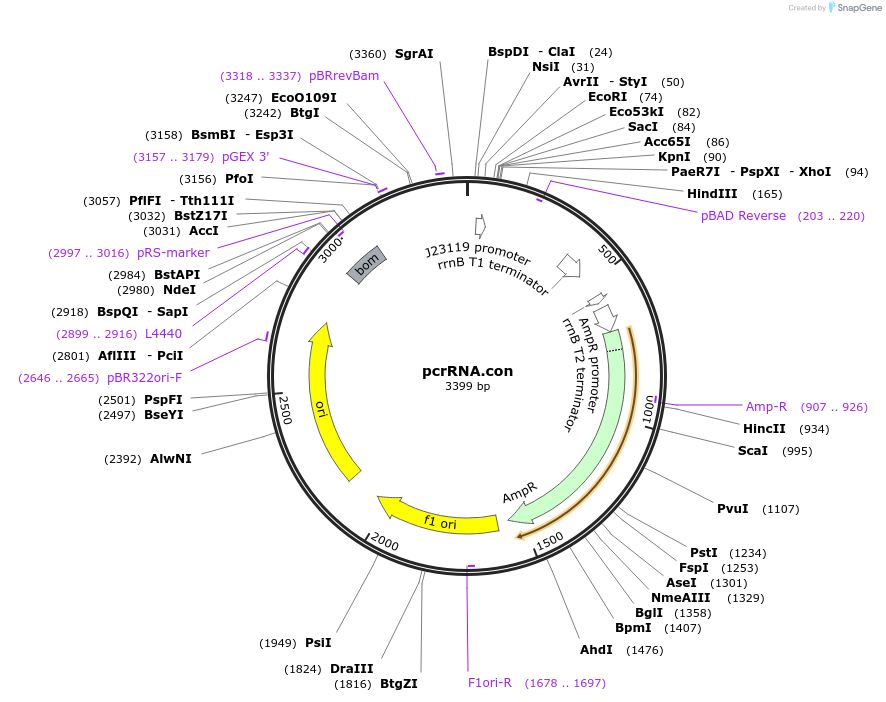

Map uploaded by the depositor.
