pAND_Reporter
(Plasmid
#60591)
-
PurposeAND gate reporter
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 60591 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneunknown
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH10B
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameAND_Reporter
-
Alt nameattB-GFPmut3-RiboJ-attP
-
SpeciesSynthetic
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer GFP-F
- 3′ sequencing primer GFP-R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAND_Reporter was a gift from Christopher Voigt (Addgene plasmid # 60591 ; http://n2t.net/addgene:60591 ; RRID:Addgene_60591) -
For your References section:
Permanent genetic memory with >1-byte capacity. Yang L, Nielsen AA, Fernandez-Rodriguez J, McClune CJ, Laub MT, Lu TK, Voigt CA. Nat Methods. 2014 Dec;11(12):1261-6. doi: 10.1038/nmeth.3147. Epub 2014 Oct 26. 10.1038/nmeth.3147 PubMed 25344638

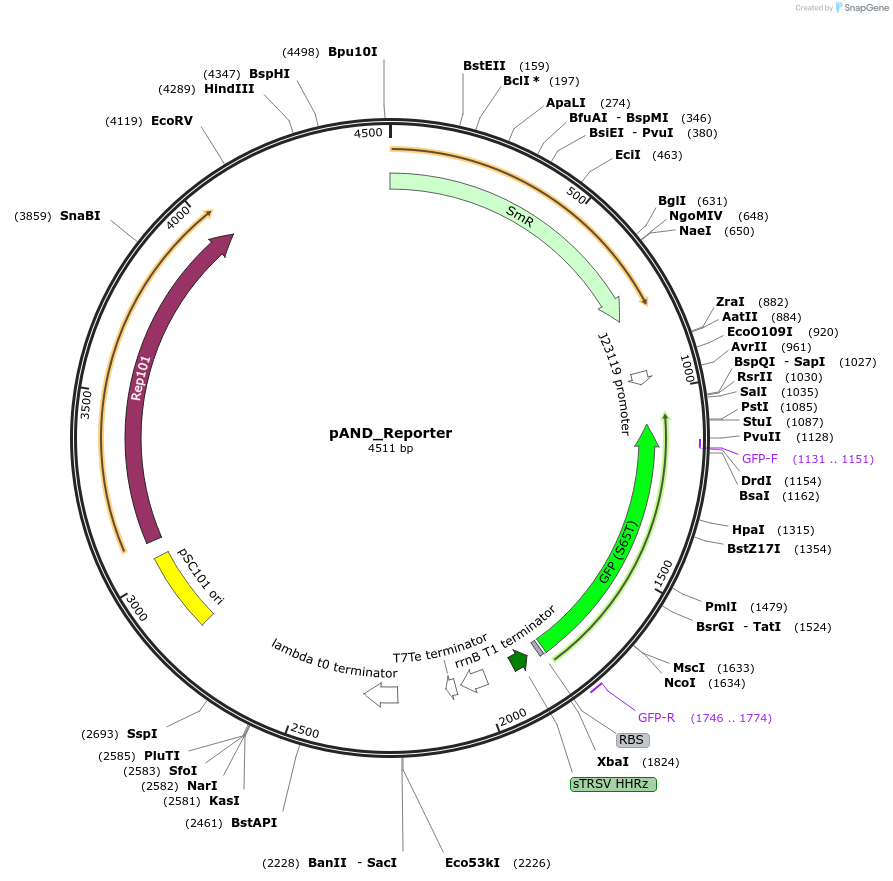

Map uploaded by the depositor.
