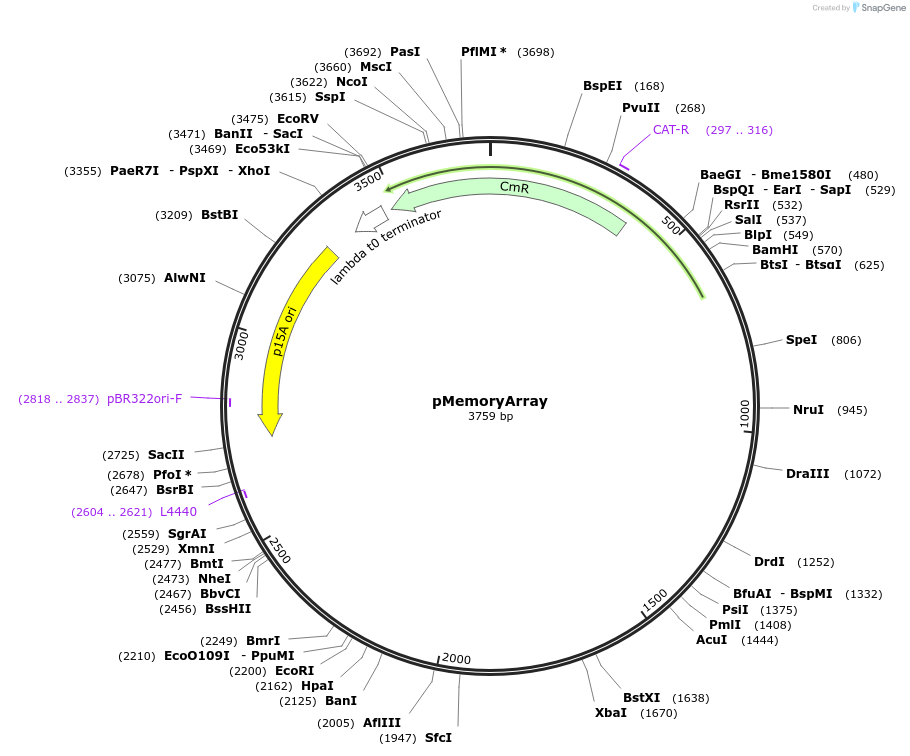

pMemoryArray
(Plasmid #60585)

• Purpose: An array constructed by concatenating the attB/P sites of the 11 phage integrases and can be used to distinguish 2048 possible combinations of events.
• Depositing Lab: Christopher Voigt
• Publication: Yang et al Nat Methods. 2014 Dec;11(12):1261-6. doi: 10.1038/nmeth.3147. Epub 2014 Oct 26.

Backbone

• Vector backbone: unknown
• Total vector size (bp): 3793
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol, 25 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH10B
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: MemoryArray
• Alt name: 11 attB/P sites and spacers
• Species: Synthetic

Cloning Information

• Cloning method: Unknown
• 5′ sequencing primer: CAT-R

Resource Information

• Supplemental Documents:
  • pMemoryArray

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

An array was constructed by concatenating the attB/P sites of the 11 phage integrases to form a linear 2kb piece of DNA. Random spacers (50 bp) with 50% GC content are included between the att sites.
