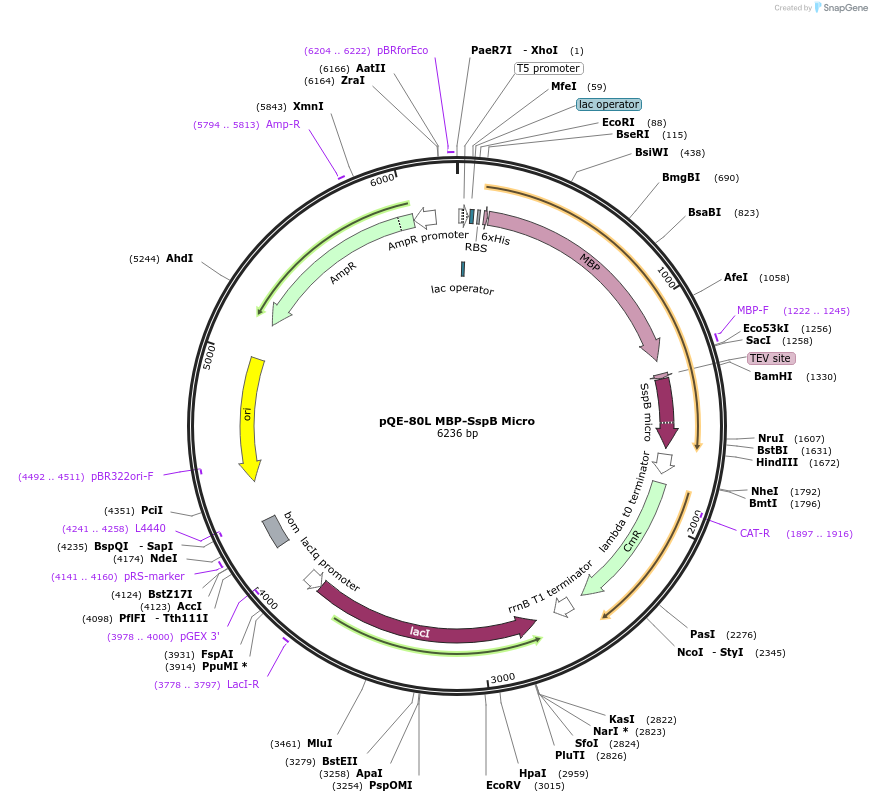

pQE-80L MBP-SspB Micro
(Plasmid #60410)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 60410 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pQE-80L
  • Backbone manufacturer
    Qiagen
  • Backbone size w/o insert (bp) 5979
  • Total vector size (bp) 6315
  • Modifications to backbone
    Added N-terminal MBP
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    SspB micro
  • Species
    E. Coli
  • Insert Size (bp)
    336
  • Mutation
    R73Q, Y11K and A15E
  • Tag / Fusion Protein
    • His-MBP-TEV (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH1 (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer pQE-80L Fwd
  • 3′ sequencing primer pQE-80L Rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The SspB used in this construct contains two amino acid mutations that disrupt the natural dimerization of SspB. These mutations are Y11K and A15E (residue numbering from pdb code 1ou9). Here is the sequence around the mutated residues with the sites of mutation in parentheses: SSPKRP(K)LLR(E)YYDWLVDNS

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQE-80L MBP-SspB Micro was a gift from Brian Kuhlman (Addgene plasmid # 60410 ; http://n2t.net/addgene:60410 ; RRID:Addgene_60410)
  • For your References section:

    Engineering an improved light-induced dimer (iLID) for controlling the localization and activity of signaling proteins. Guntas G, Hallett RA, Zimmerman SP, Williams T, Yumerefendi H, Bear JE, Kuhlman B. Proc Natl Acad Sci U S A. 2015 Jan 6;112(1):112-7. doi: 10.1073/pnas.1417910112. Epub 2014 Dec 22. 10.1073/pnas.1417910112 PubMed 25535392
