Purpose(Empty Backbone) This is a modified version of the pGL4.23 vector from Promega, containing a Gateway cassette upstream of the minimal promoter. This vector can be used for for Gateway cloning of candidate enhancer elements. As negative control, use pGL4.23 without the gateway cassette (available from Promega).
-
Depositing Lab
-

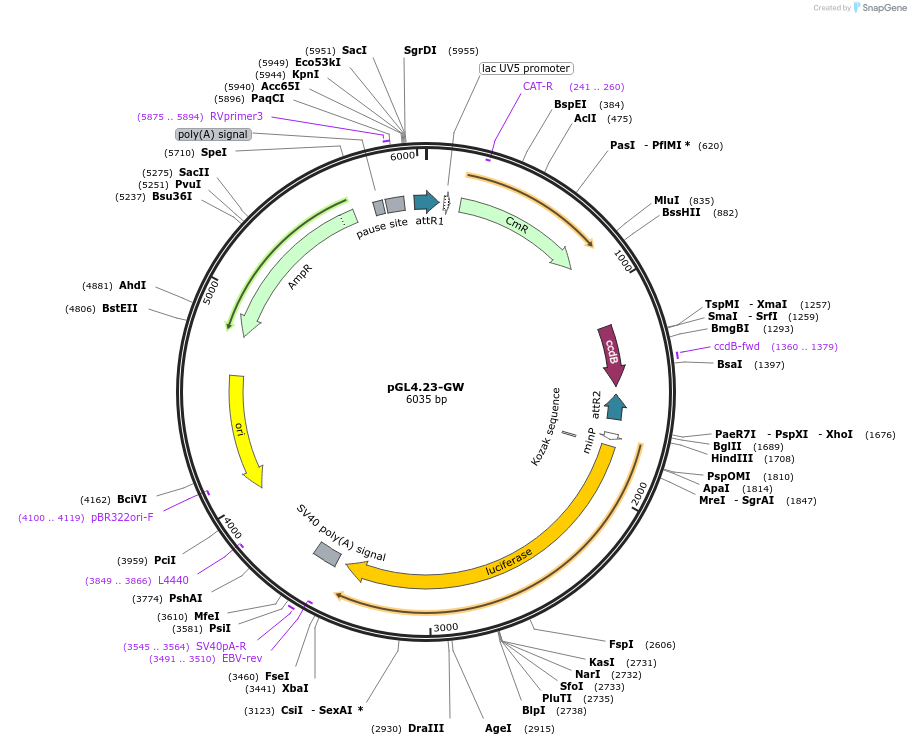

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 60323 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepGL4.23
-
Backbone manufacturerPromega
- Backbone size (bp) 4283
-
Vector typeMammalian Expression, Luciferase
-
Tag
/ Fusion Protein
- Luciferase (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNone
-
Tag
/ Fusion Protein
- Luciferase (C terminal on backbone)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Gateway cassette was inserted between SacI and XhoI restriction sites in the MCS.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGL4.23-GW was a gift from Jorge Ferrer (Addgene plasmid # 60323 ; http://n2t.net/addgene:60323 ; RRID:Addgene_60323) -
For your References section:
Pancreatic islet enhancer clusters enriched in type 2 diabetes risk-associated variants. Pasquali L, Gaulton KJ, Rodriguez-Segui SA, Mularoni L, Miguel-Escalada I, Akerman I, Tena JJ, Moran I, Gomez-Marin C, van de Bunt M, Ponsa-Cobas J, Castro N, Nammo T, Cebola I, Garcia-Hurtado J, Maestro MA, Pattou F, Piemonti L, Berney T, Gloyn AL, Ravassard P, Gomez-Skarmeta JL, Muller F, McCarthy MI, Ferrer J. Nat Genet. 2014 Feb;46(2):136-43. doi: 10.1038/ng.2870. Epub 2014 Jan 12. 10.1038/ng.2870 PubMed 24413736
