pcDNA3-Nrxn1beta AS4(+)-Fc
(Plasmid #59314)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 59314 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 6672
  • Total vector size (bp) 7545
  • Modifications to backbone
    Fc-tag (from human IgG) added, resulting in secreted Fc-fusion protein
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Nrxn1beta AS4(+)-Fc fusion
  • Alt name
    Nrxn1beta AS4(+)
  • Alt name
    Neurexin 1 beta AS4(+)
  • Alt name
    Neurexin 1 beta (splice 4)
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    873
  • GenBank ID
  • Entrez Gene
    Nrxn1 (a.k.a. 1700062G21Rik, 9330127H16Rik, A230068P09Rik, mKIAA0578)
  • Promoter CMV, T7
  • Tag / Fusion Protein
    • Fc (from human IgG) (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BglII (not destroyed)
  • 5′ sequencing primer CMV Forward (5'-CGCAAATGGGCGGTAGGCGTG-3'), T7 (5'-TAATACGACTCACTATAGGG-3')
  • 3′ sequencing primer FC-rev (5'-CGGGTGAAGAGGCAGACG-3'); SP6 (5'-ATTTAGGTGACACTATAG-3')
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Fc-portion contains intronic sequences which improve expression.

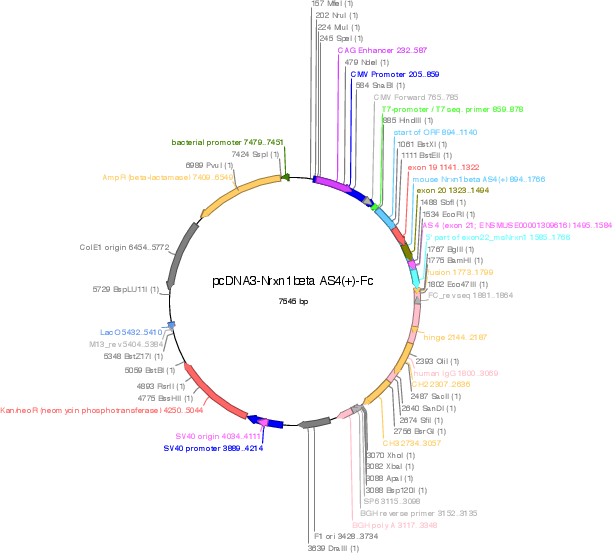

See map & sequence file for insert-releasing enzymes (e.g. HindIII / BglII for untagged Nrxn1beta, and HindIII / XhoI for Nrxn1beta-FC-fusion).
The Nrxn 1 beta variant encoded by this plasmid is AS4(+), meaning exon 21 constituting alternatively spliced segment 4 (AS4) (=ENSMUSE00001309616) is present.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-Nrxn1beta AS4(+)-Fc was a gift from Peter Scheiffele & Tito Serafini (Addgene plasmid # 59314 ; http://n2t.net/addgene:59314 ; RRID:Addgene_59314)
  • For your References section:

    Neuroligin expressed in nonneuronal cells triggers presynaptic development in contacting axons. Scheiffele P, Fan J, Choih J, Fetter R, Serafini T. Cell. 2000 Jun 9. 101(6):657-69. 10.1016/S0092-8674(00)80877-6 PubMed 10892652
