pOTTC592 - pCMV Mito-iRFP
(Plasmid
#59135)
-
PurposeA plasmid that express mitochondrial-targeted iRFP under the CMV promoter.
-
Depositing Lab
-

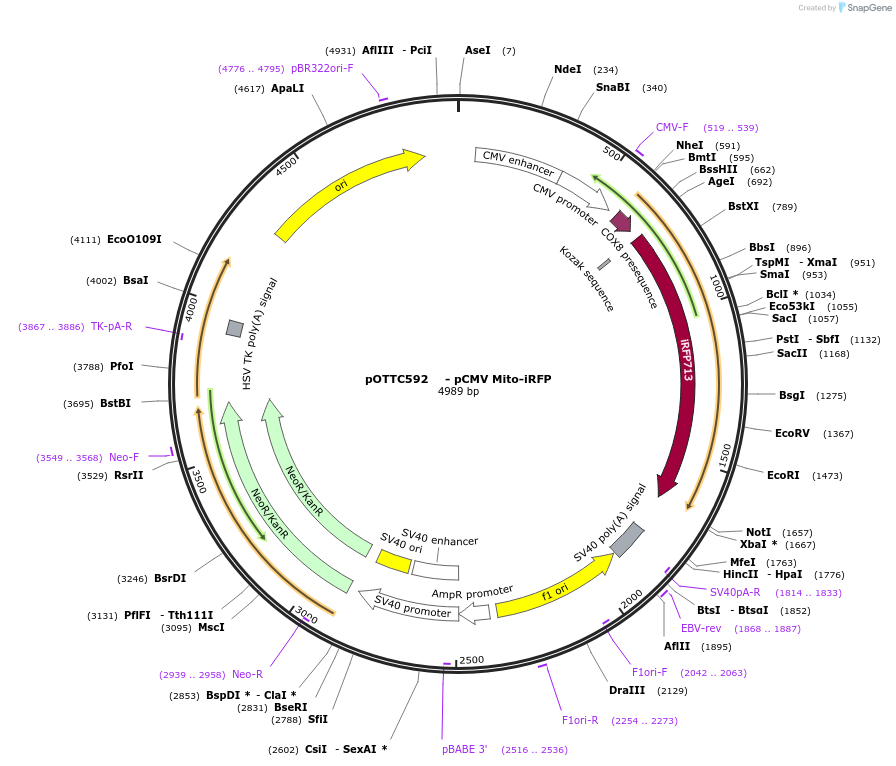

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 59135 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepDsRed-Mito
-
Backbone manufacturerClontech
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMitochondria-localized Infrared Fluorescent Protein
-
Alt nameiRFP713
- Promoter CMV-IE
-
Tag
/ Fusion Protein
- Mitochondria-targeting sequence (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer CMV F
- 3′ sequencing primer SV40pA R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pOTTC592 - pCMV Mito-iRFP was a gift from Brandon Harvey (Addgene plasmid # 59135 ; http://n2t.net/addgene:59135 ; RRID:Addgene_59135) -
For your References section:
Near-infrared fluorescent protein iRFP713 as a reporter protein for optogenetic vectors, a transgenic Cre-reporter rat, and other neuronal studies. Richie CT, Whitaker LR, Whitaker KW, Necarsulmer J, Baldwin HA, Zhang Y, Fortuno L, Hinkle JJ, Koivula P, Henderson MJ, Sun W, Wang K, Smith JC, Pickel J, Ji N, Hope BT, Harvey BK. J Neurosci Methods. 2017 Jun 1;284:1-14. doi: 10.1016/j.jneumeth.2017.03.020. Epub 2017 Apr 2. 10.1016/j.jneumeth.2017.03.020 PubMed 28380331
