pOTTC591 - pCMV Mem-iRFP
(Plasmid
#59134)
-
PurposeA plasmid that express membrane-targeted iRFP under the CMV promoter.
-
Depositing Lab
-

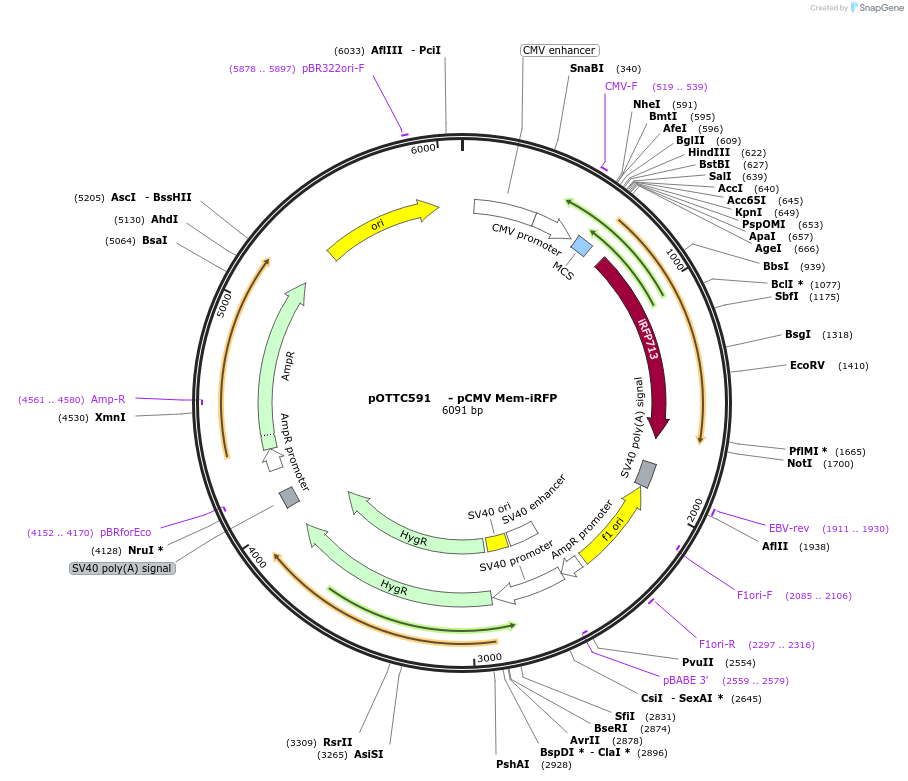

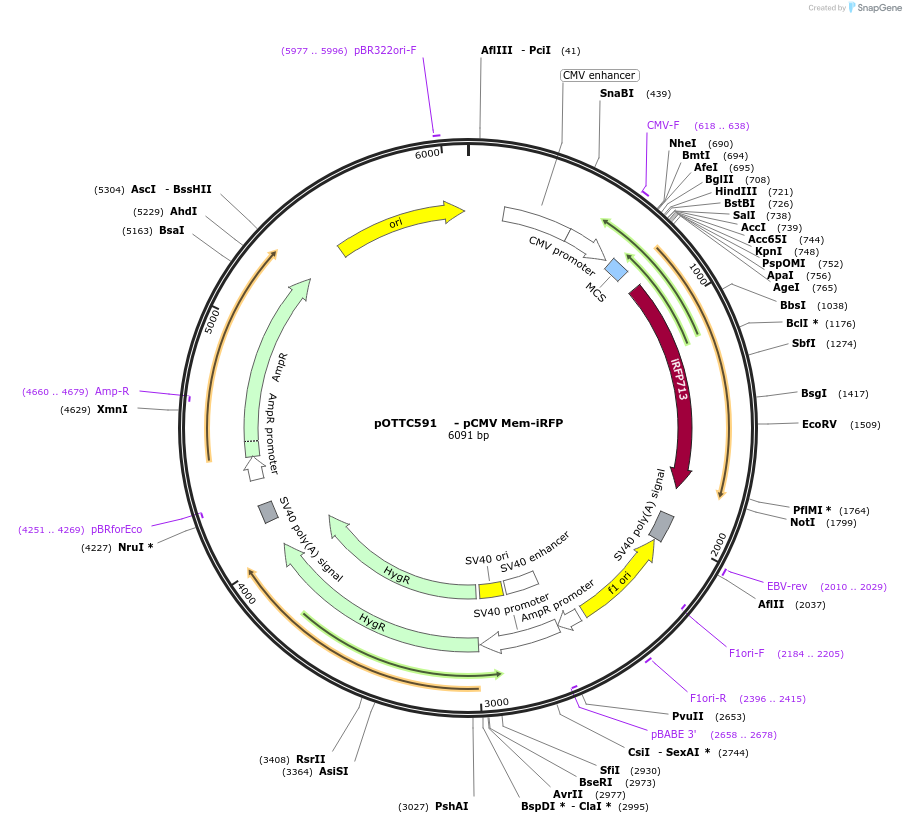

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 59134 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepAcGFP-Mem-hygro
-
Backbone manufacturerClontech
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMembrane-localized Infrared Fluorescent Protein
-
Alt nameiRFP713
- Promoter CMV-IE
-
Tag
/ Fusion Protein
- Palmitylation signal (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer CMV F
- 3′ sequencing primer SV40pA R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pOTTC591 - pCMV Mem-iRFP was a gift from Brandon Harvey (Addgene plasmid # 59134 ; http://n2t.net/addgene:59134 ; RRID:Addgene_59134) -
For your References section:
Near-infrared fluorescent protein iRFP713 as a reporter protein for optogenetic vectors, a transgenic Cre-reporter rat, and other neuronal studies. Richie CT, Whitaker LR, Whitaker KW, Necarsulmer J, Baldwin HA, Zhang Y, Fortuno L, Hinkle JJ, Koivula P, Henderson MJ, Sun W, Wang K, Smith JC, Pickel J, Ji N, Hope BT, Harvey BK. J Neurosci Methods. 2017 Jun 1;284:1-14. doi: 10.1016/j.jneumeth.2017.03.020. Epub 2017 Apr 2. 10.1016/j.jneumeth.2017.03.020 PubMed 28380331
