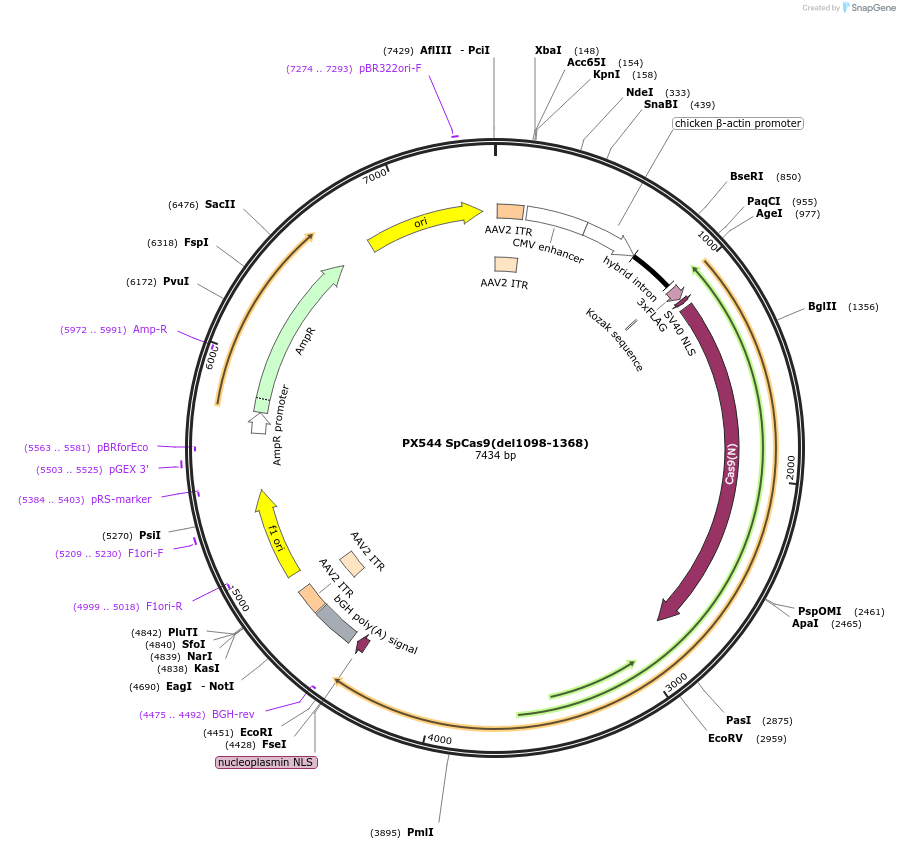

PX544 SpCas9(del1098-1368)
(Plasmid #58889)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 58889 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    PX165
  • Total vector size (bp) 8107
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    hSpCas9
  • Alt name
    SpCas9
  • Alt name
    Cas9
  • Species
    Synthetic
  • Mutation
    del amino acids 1098-1368
  • Tag / Fusion Protein
    • 3XFLAG (N terminal on insert)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For more information on Zhang Lab CRISPR Plasmids please refer to: http://www.addgene.org/crispr/zhang/.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PX544 SpCas9(del1098-1368) was a gift from Feng Zhang (Addgene plasmid # 58889 ; http://n2t.net/addgene:58889 ; RRID:Addgene_58889)
  • For your References section:

    Crystal structure of Cas9 in complex with guide RNA and target DNA. Nishimasu H, Ran FA, Hsu PD, Konermann S, Shehata SI, Dohmae N, Ishitani R, Zhang F, Nureki O. Cell. 2014 Feb 27;156(5):935-49. doi: 10.1016/j.cell.2014.02.001. Epub 2014 Feb 13. 10.1016/j.cell.2014.02.001 PubMed 24529477
