FRB_SCF2_LD6_CTEV
(Plasmid #58879)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 58879 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

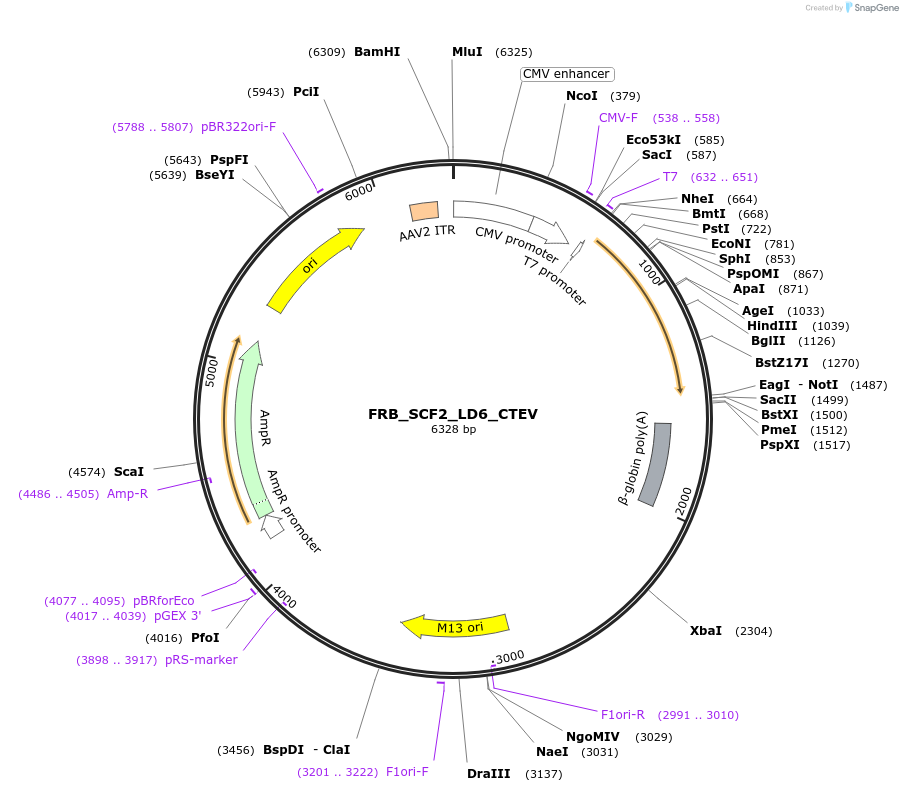

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 5521
  • Total vector size (bp) 6328
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    MESA split protease chain with FRB rapamycin-binding ectodomain and C terminal fragment of TEV protease
  • Species
    Synthetic
  • Insert Size (bp)
    807
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ATGTGCCGAGCCATCTCTCT
  • 3′ sequencing primer CTAATTCATGAGTTGAGTCG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FRB_SCF2_LD6_CTEV was a gift from Joshua Leonard (Addgene plasmid # 58879 ; http://n2t.net/addgene:58879 ; RRID:Addgene_58879)

  • For your References section:

    Modular Extracellular Sensor Architecture for Engineering Mammalian Cell-based Devices. Daringer NM, Dudek RM, Schwarz KA, Leonard JN. ACS Synth Biol. 2014 Mar 11. 10.1021/sb400128g PubMed 24611683
