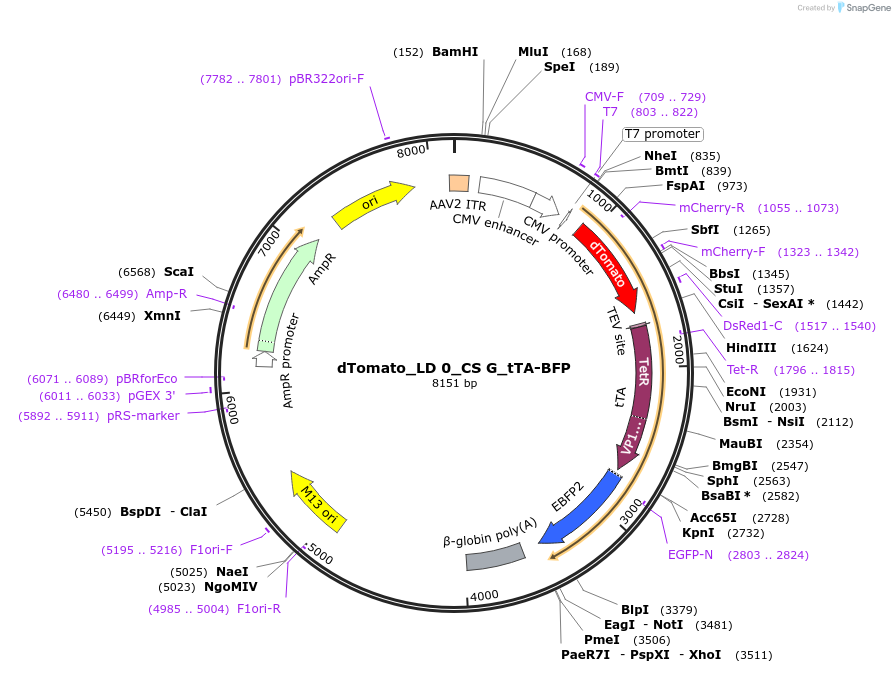

dTomato_LD 0_CS G_tTA-BFP
(Plasmid #58871)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 58871 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 5520
  • Total vector size (bp) 8151
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    MESA target chain with dTomato ectodomain, cd28 transmembrane domain, wild type TEV cleavage sequence
  • Species
    Synthetic
  • Insert Size (bp)
    2631
  • Promoter CMV
  • Tag / Fusion Protein
    • EBFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ATGTGCCGAGCCATCTCTCT
  • 3′ sequencing primer TTACTTGTACAGCTCGTCCA
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    dTomato_LD 0_CS G_tTA-BFP was a gift from Joshua Leonard (Addgene plasmid # 58871 ; http://n2t.net/addgene:58871 ; RRID:Addgene_58871)

  • For your References section:

    Modular Extracellular Sensor Architecture for Engineering Mammalian Cell-based Devices. Daringer NM, Dudek RM, Schwarz KA, Leonard JN. ACS Synth Biol. 2014 Mar 11. 10.1021/sb400128g PubMed 24611683
