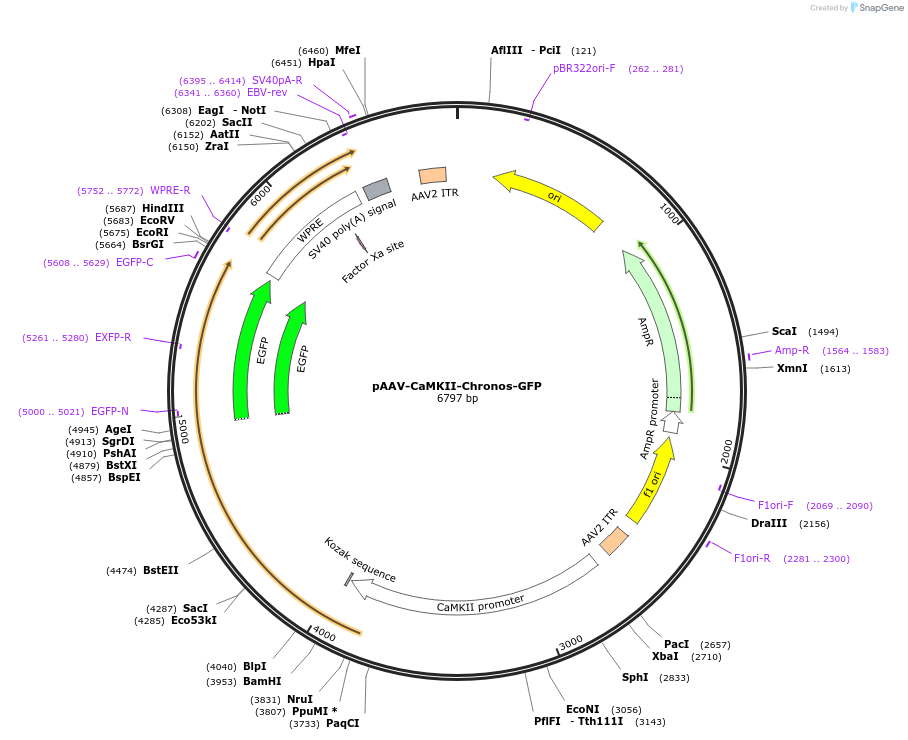

pAAV-CaMKII-Chronos-GFP
(Plasmid #58805)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 58805 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    AAV
  • Backbone size w/o insert (bp) 5087
  • Total vector size (bp) 6797
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Stbl3 at 30C (use carbenicillin if using Stbl3) OR DH5a at 37C
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Chronos-GFP
  • Alt name
    ChR90-GFP
  • Alt name
    Stigeoclonium helveticum channelrhodopsin
  • Species
    Stigeoclonium helveticum
  • Insert Size (bp)
    1710
  • Promoter CaMKII
  • Tag / Fusion Protein
    • GFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer TCTCCATTTGCACTCAGG
  • 3′ sequencing primer cagcgtatccacatagcg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Plasmid is sequenced completely by the depositing lab except for parts of both ITRs. Multiple digestions were done to verify the vector structure. The construct and the virus were both tested in vitro. They are 10 traditional basepair differences in the CamkII promoter relative to wild-type, which is not a problem.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CaMKII-Chronos-GFP was a gift from Edward Boyden (Addgene plasmid # 58805 ; http://n2t.net/addgene:58805 ; RRID:Addgene_58805)
  • For your References section:

    Independent optical excitation of distinct neural populations. Klapoetke NC, Murata Y, Kim SS, Pulver SR, Birdsey-Benson A, Cho YK, Morimoto TK, Chuong AS, Carpenter EJ, Tian Z, Wang J, Xie Y, Yan Z, Zhang Y, Chow BY, Surek B, Melkonian M, Jayaraman V, Constantine-Paton M, Wong GK, Boyden ES. Nat Methods. 2014 Mar;11(3):338-46. doi: 10.1038/nmeth.2836. Epub 2014 Feb 9. 10.1038/nmeth.2836 PubMed 24509633
