PurposeExpress LucN alone in mammalian cells
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 58790 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

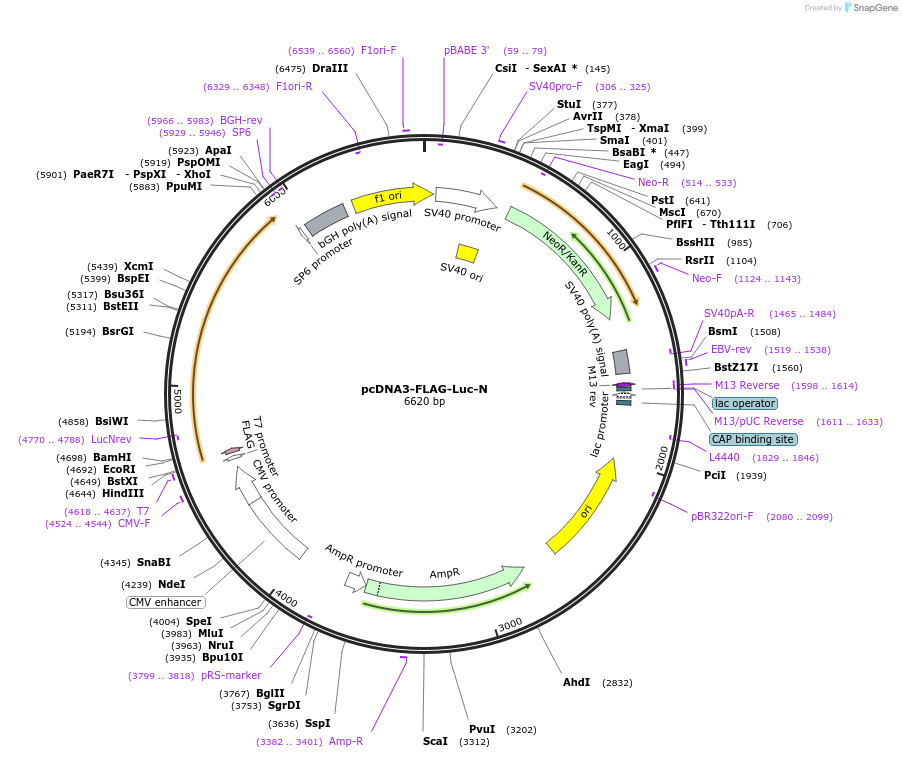

Vector backbonepcDNA3
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namefirefly Luciferase 1-398
-
Insert Size (bp)1200
-
MutationT576C,T591C to destroy MfeI and EcoRI sites
- Promoter CMV
-
Tag
/ Fusion Protein
- FLAG (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer T7
- 3′ sequencing primer SP6 (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3-FLAG-Luc-N was a gift from Hiroyoshi Ariga (Addgene plasmid # 58790 ; http://n2t.net/addgene:58790 ; RRID:Addgene_58790) -
For your References section:
A split luciferase-based reporter for detection of a cellular macromolecular complex. Maita H, Tomita K, Ariga H. Anal Biochem. 2014 Feb 3. pii: S0003-2697(14)00035-9. doi: 10.1016/j.ab.2014.01.015. 10.1016/j.ab.2014.01.015 PubMed 24503441
