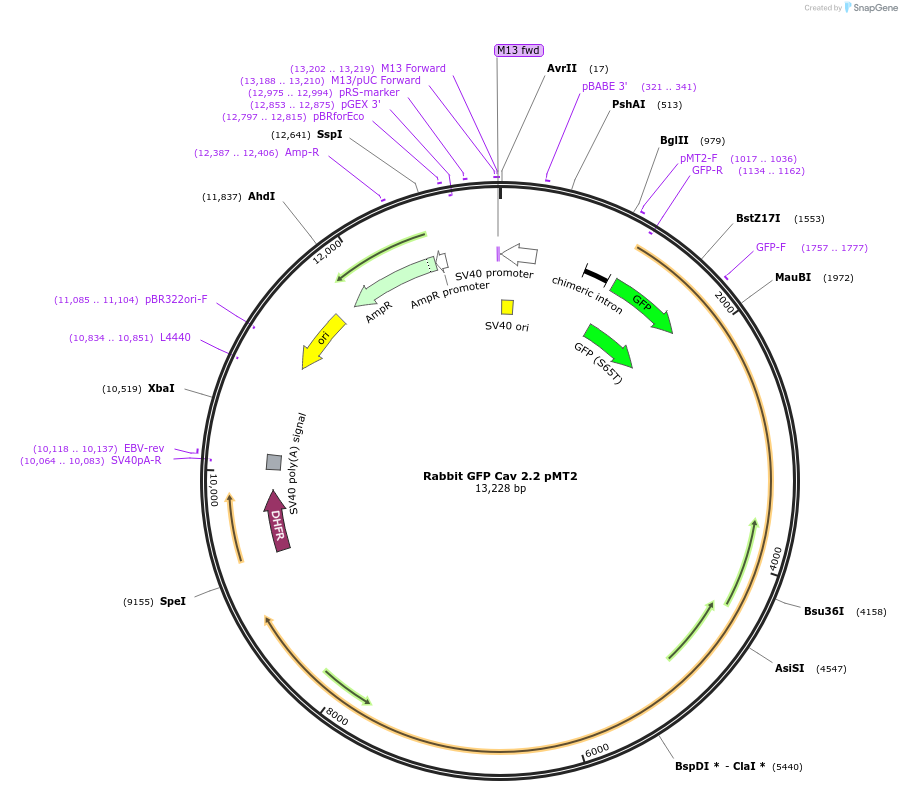

Rabbit GFP Cav 2.2 pMT2
(Plasmid #58737)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 58737 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pMT2
  • Backbone size w/o insert (bp) 5100
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Cav2.2
  • Alt name
    voltage-dependent N-type calcium channel subunit alpha-1B
  • Species
    O. cuniculus (rabbit)
  • GenBank ID
    D14157.1
  • Entrez Gene
    CACNA1B
  • Promoter SV40
  • Tag / Fusion Protein
    • GFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer GFP-F
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Original Cav2.2 plasmid from Yasuo Mori.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Rabbit GFP Cav 2.2 pMT2 was a gift from Annette Dolphin (Addgene plasmid # 58737 ; http://n2t.net/addgene:58737 ; RRID:Addgene_58737)

  • For your References section:

    Dominant-negative synthesis suppression of voltage-gated calcium channel Cav2.2 induced by truncated constructs. Raghib A, Bertaso F, Davies A, Page KM, Meir A, Bogdanov Y, Dolphin AC. J Neurosci. 2001 Nov 1;21(21):8495-504. 21/21/8495 [pii] PubMed 11606638
