HSC1-GiP
(Plasmid
#58254)
-
PurposeThis self-inactivated retroviral vector has an internal human EF1alpha promoter driving the expression of a bicistronic EGFP ires Puromycin cassette
-
Depositing Lab
-

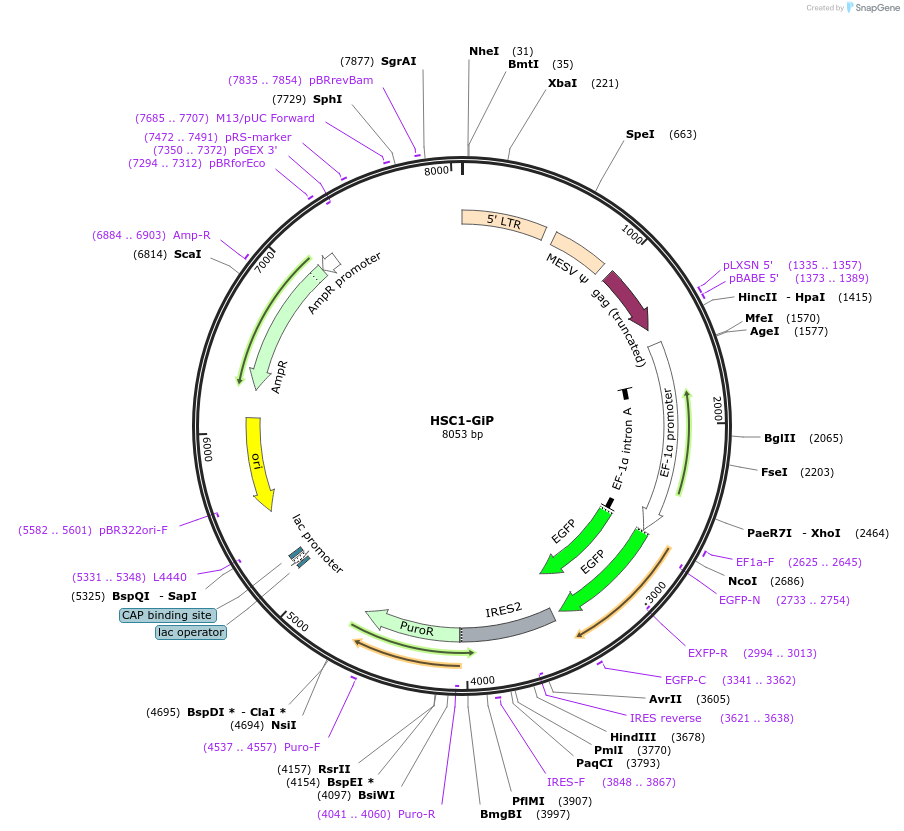

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 58254 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneHSC1 retroviral vector
- Backbone size w/o insert (bp) 4941
- Total vector size (bp) 8075
-
Vector typeMammalian Expression, Retroviral
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEnhanced Green Fluorescence Protein, Puromycin resistance gene
-
Alt nameEiP
-
Insert Size (bp)1945
- Promoter Human EF1-alpha
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer gccggaattcgttaacctca
- 3′ sequencing primer ccatatgatcgatgcatggg (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note that there is a small deletion (32bp) just after the 3’LTR inside the cloning vector that removes the M13R primer region. The depositing lab was able to produce viruses with good titer and doesn’t think the missing 32bp is a major concern.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
HSC1-GiP was a gift from James Ellis (Addgene plasmid # 58254 ; http://n2t.net/addgene:58254 ; RRID:Addgene_58254) -
For your References section:
Kinetics and epigenetics of retroviral silencing in mouse embryonic stem cells defined by deletion of the D4Z4 element. Rival-Gervier S, Lo MY, Khattak S, Pasceri P, Lorincz MC, Ellis J. Mol Ther. 2013 Aug;21(8):1536-50. doi: 10.1038/mt.2013.131. Epub 2013 Jun 11. 10.1038/mt.2013.131 PubMed 23752310
