pLKO5.sgRNA.EFS.GFP
(Plasmid #57822)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 57822 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

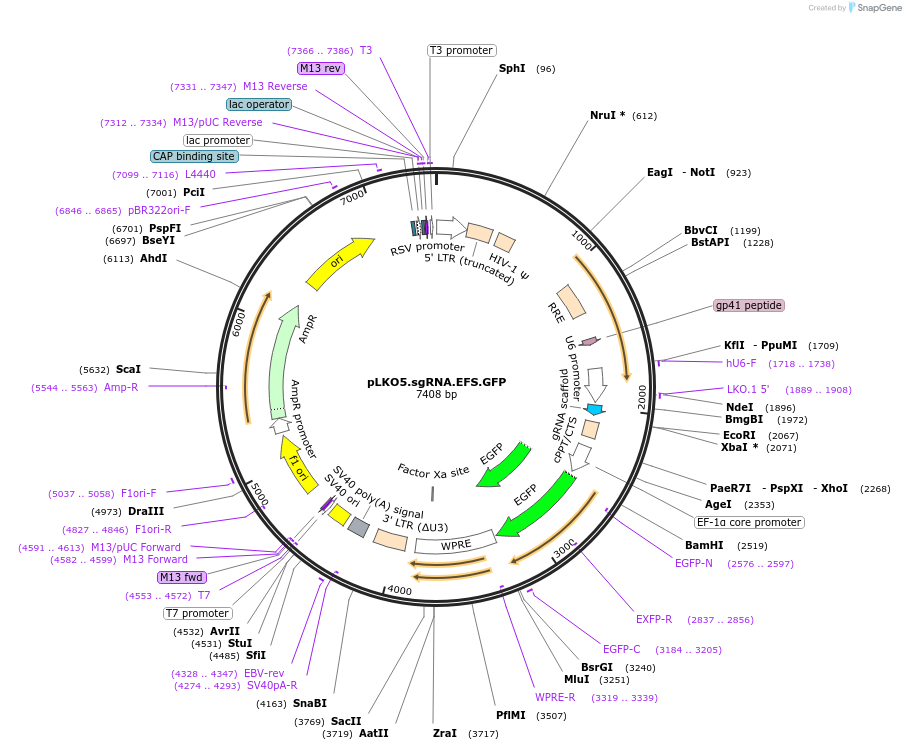

Backbone

  • Vector backbone
    pLKO.005
  • Total vector size (bp) 7414
  • Vector type
    Lentiviral, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    sgRNA
  • Insert Size (bp)
    75

Gene/Insert 2

  • Gene/Insert name
    EFS
  • Alt name
    short EF1-alpha promoter
  • Insert Size (bp)
    250

Gene/Insert 3

  • Gene/Insert name
    eGFP
  • Species
    Synthetic
  • Insert Size (bp)
    700

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Use BsmBI sites for sgRNA cloning. Note that this plasmid does NOT contain the 1.9kb stuffer from the pLKO.005 vector backbone.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLKO5.sgRNA.EFS.GFP was a gift from Benjamin Ebert (Addgene plasmid # 57822 ; http://n2t.net/addgene:57822 ; RRID:Addgene_57822)

  • For your References section:

    Generation of mouse models of myeloid malignancy with combinatorial genetic lesions using CRISPR-Cas9 genome editing. Heckl D, Kowalczyk MS, Yudovich D, Belizaire R, Puram RV, McConkey ME, Thielke A, Aster JC, Regev A, Ebert BL. Nat Biotechnol. 2014 Jun 22. doi: 10.1038/nbt.2951. 10.1038/nbt.2951 PubMed 24952903
