miniSOG-Rab5a-7
(Plasmid
#57774)
-
PurposeLocalization: Ras GTPase, Excitation: 448 / 473, Emission: 500 / 528
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 57774 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * |
* Log in to view industry pricing.

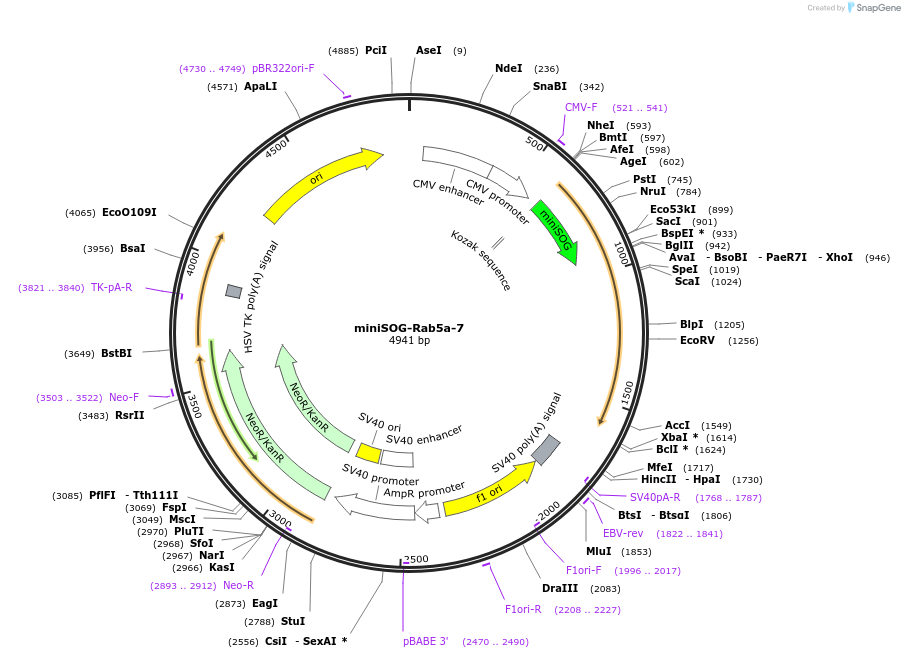

Backbone
-
Vector backboneminiSOG
- Backbone size w/o insert (bp) 4750
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRab5a
-
Alt nameNM_004162.4
- Promoter CMV
-
Tag
/ Fusion Protein
- miniSOG (N terminal on backbone)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV-F
- 3′ sequencing primer SV40pA-R (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
. Excitation = 448 / 473; Emission = 500 / 528
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
miniSOG-Rab5a-7 was a gift from Michael Davidson (Addgene plasmid # 57774 ; http://n2t.net/addgene:57774 ; RRID:Addgene_57774) -
For your References section:
A genetically encoded tag for correlated light and electron microscopy of intact cells, tissues, and organisms. Shu X, Lev-Ram V, Deerinck TJ, Qi Y, Ramko EB, Davidson MW, Jin Y, Ellisman MH, Tsien RY. PLoS Biol. 2011 Apr;9(4):e1001041. doi: 10.1371/journal.pbio.1001041. Epub 2011 Apr 5. 10.1371/journal.pbio.1001041 PubMed 21483721
