tdEos-VSVG-16
(Plasmid
#57693)
-
PurposeLocalization: Golgi/ER Transport, Excitation: 505 / 569, Emission: 516 / 581
-
Depositing Lab
-

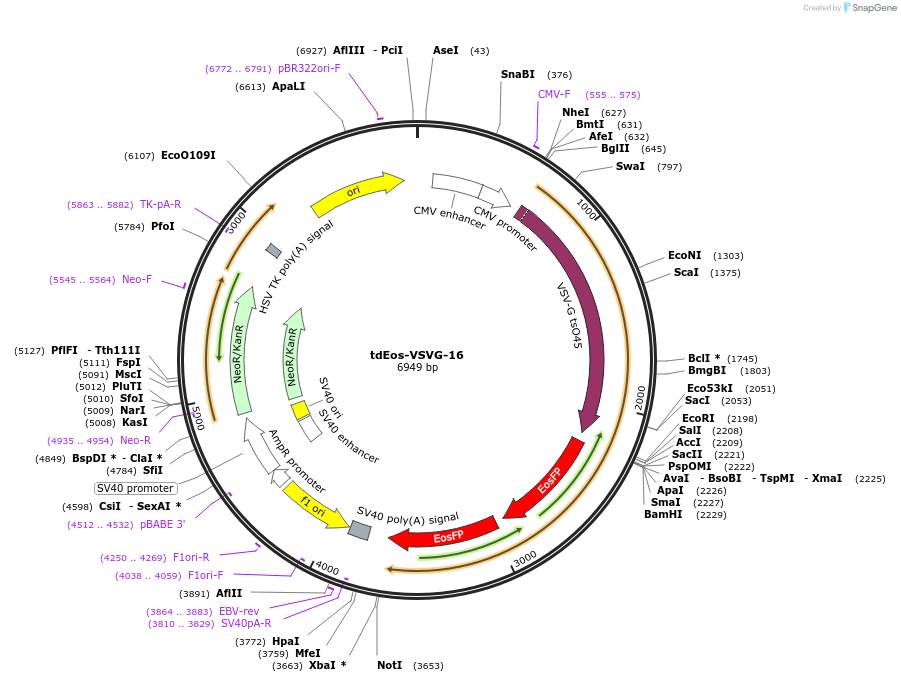

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 57693 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * |
* Log in to view industry pricing.
Backbone
-
Vector backbonetdEos
- Backbone size w/o insert (bp) 4750
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameVSVG
-
Alt nameM11048.1
- Promoter CMV
-
Tag
/ Fusion Protein
- tdEos
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV-F
- 3′ sequencing primer SV40pA-R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
. Excitation = 505 / 569; Emission = 516 / 581
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
tdEos-VSVG-16 was a gift from Michael Davidson (Addgene plasmid # 57693 ; http://n2t.net/addgene:57693 ; RRID:Addgene_57693) -
For your References section:
Interferometric fluorescent super-resolution microscopy resolves 3D cellular ultrastructure. Shtengel G, Galbraith JA, Galbraith CG, Lippincott-Schwartz J, Gillette JM, Manley S, Sougrat R, Waterman CM, Kanchanawong P, Davidson MW, Fetter RD, Hess HF. Proc Natl Acad Sci U S A. 2009 Mar 3;106(9):3125-30. doi: 10.1073/pnas.0813131106. Epub 2009 Feb 6. 10.1073/pnas.0813131106 PubMed 19202073
