Clover-PMP-N-10
(Plasmid #56305)

Print

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 56305 Standard format: Plasmid sent in bacteria as agar stab 1 $85 *
Add to Cart

* Log in to view industry pricing.

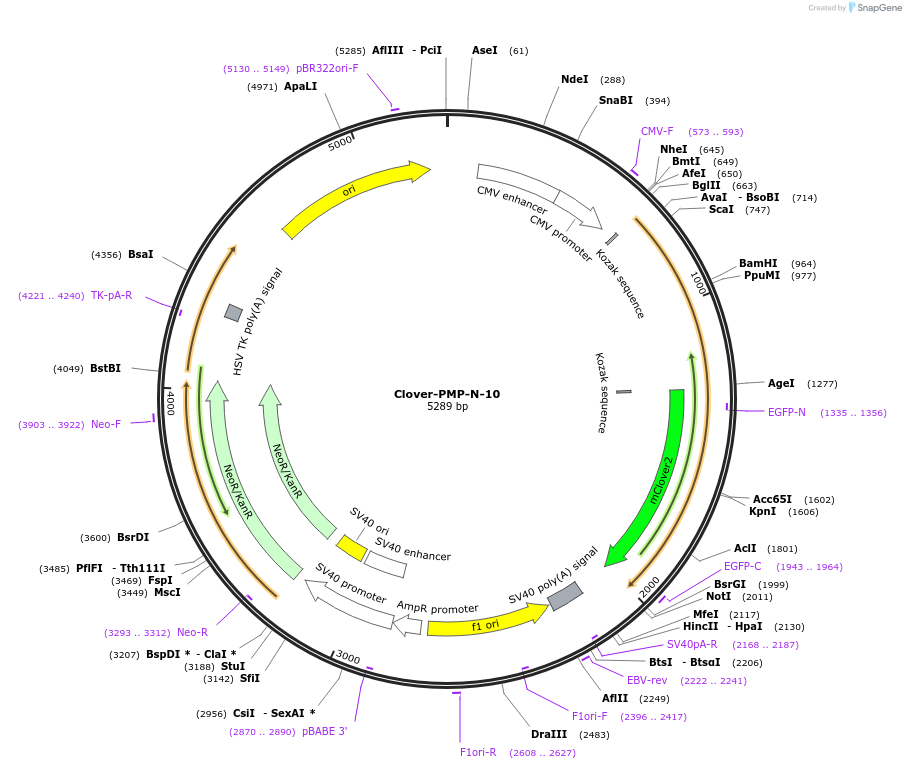

Backbone

  • Vector backbone
    mClover2-N1
  • Backbone size w/o insert (bp) 4750
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PMP
  • Alt name
    NM_018663.1
  • Species
    H. sapiens (human)
  • Entrez Gene
    PXMP2 (a.k.a. PMP22)
  • Promoter CMV
  • Tag / Fusion Protein
    • mClover2 (C terminal on backbone)

Cloning Information

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

. Excitation = 505; Emission = 515

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Clover-PMP-N-10 was a gift from Michael Davidson (Addgene plasmid # 56305 ; http://n2t.net/addgene:56305 ; RRID:Addgene_56305)

  • For your References section:

    Improving FRET dynamic range with bright green and red fluorescent proteins. Lam AJ, St-Pierre F, Gong Y, Marshall JD, Cranfill PJ, Baird MA, McKeown MR, Wiedenmann J, Davidson MW, Schnitzer MJ, Tsien RY, Lin MZ. Nat Methods. 2012 Sep 9. doi: 10.1038/nmeth.2171. 10.1038/nmeth.2171 PubMed 22961245
