PurposeFlp-Dependent ChR2-EYFP
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 55639 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

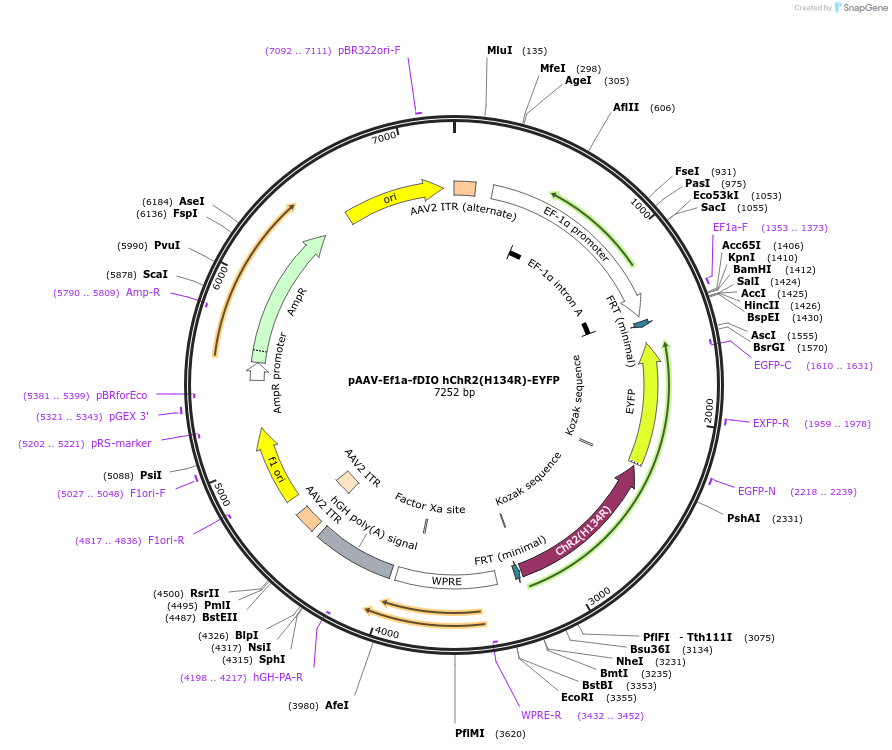

Backbone
-
Vector backboneAAV
- Backbone size w/o insert (bp) 5600
- Total vector size (bp) 7266
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehChR2(H134R)-EYFP
-
SpeciesSynthetic
-
Insert Size (bp)1662
- Promoter Ef1a
-
Tag
/ Fusion Protein
- EYFP (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site AscI (not destroyed)
- 3′ cloning site NheI (not destroyed)
- 5′ sequencing primer CACCCACACAAAGGAAAAGGGCC
- 3′ sequencing primer GCAATAGCATGATACAAAGG (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-Ef1a-fDIO hChR2(H134R)-EYFP was a gift from Karl Deisseroth (Addgene plasmid # 55639 ; http://n2t.net/addgene:55639 ; RRID:Addgene_55639) -
For your References section:
Targeting cells with single vectors using multiple-feature Boolean logic. Fenno LE, Mattis J, Ramakrishnan C, Hyun M, Lee SY, He M, Tucciarone J, Selimbeyoglu A, Berndt A, Grosenick L, Zalocusky KA, Bernstein H, Swanson H, Perry C, Diester I, Boyce FM, Bass CE, Neve R, Huang ZJ, Deisseroth K. Nat Methods. 2014 Jul;11(7):763-72. doi: 10.1038/nmeth.2996. Epub 2014 Jun 8. 10.1038/nmeth.2996 PubMed 24908100
