StrepII-tag
(Plasmid
#55181)
-
PurposeStreptactin-tag
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 55181 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepSB1C3
-
Backbone manufactureriGEM
- Backbone size w/o insert (bp) 2070
- Total vector size (bp) 2127
-
Vector typeSynthetic Biology ; Bacillus BioBrick Box
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameStrepII tag
-
SpeciesSynthetic
-
Insert Size (bp)57
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site PstI (not destroyed)
- 5′ sequencing primer na (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
For sequencing of insert, use the following primers:
fwd: TGCCACCTGACGTCTAAG
rev: ATTACCGCCTTTGAGTGA
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
StrepII-tag was a gift from Thorsten Mascher (Addgene plasmid # 55181 ; http://n2t.net/addgene:55181 ; RRID:Addgene_55181) -
For your References section:
The Bacillus BioBrick Box: generation and evaluation of essential genetic building blocks for standardized work with Bacillus subtilis. Radeck J, Kraft K, Bartels J, Cikovic T, Durr F, Emenegger J, Kelterborn S, Sauer C, Fritz G, Gebhard S, Mascher T. J Biol Eng. 2013 Dec 2;7(1):29. doi: 10.1186/1754-1611-7-29. 10.1186/1754-1611-7-29 PubMed 24295448

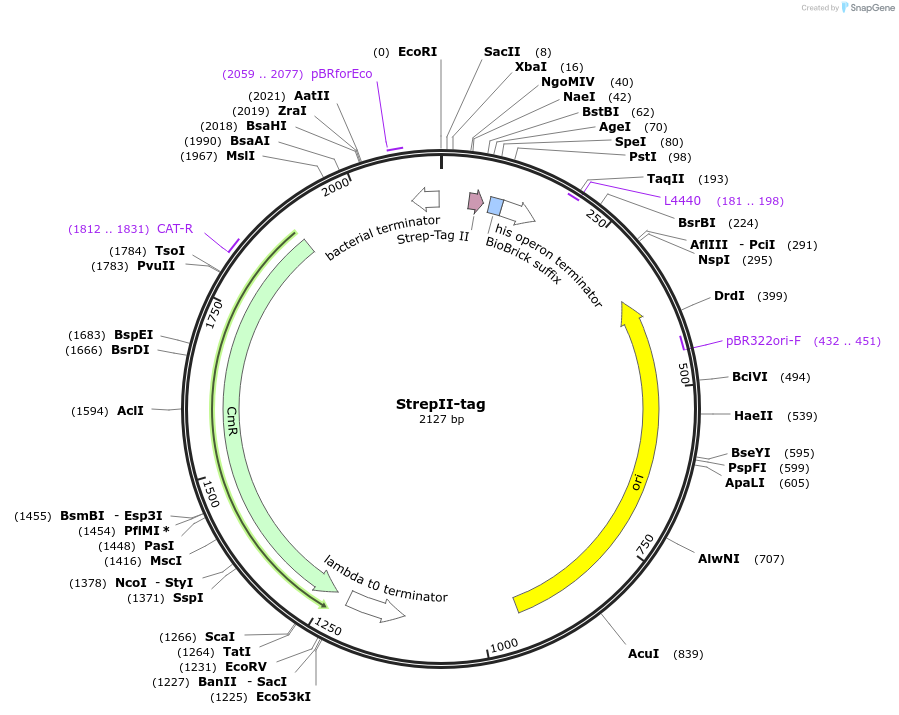

Map uploaded by the depositor.
