PxylA
(Plasmid #55178)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 55178 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

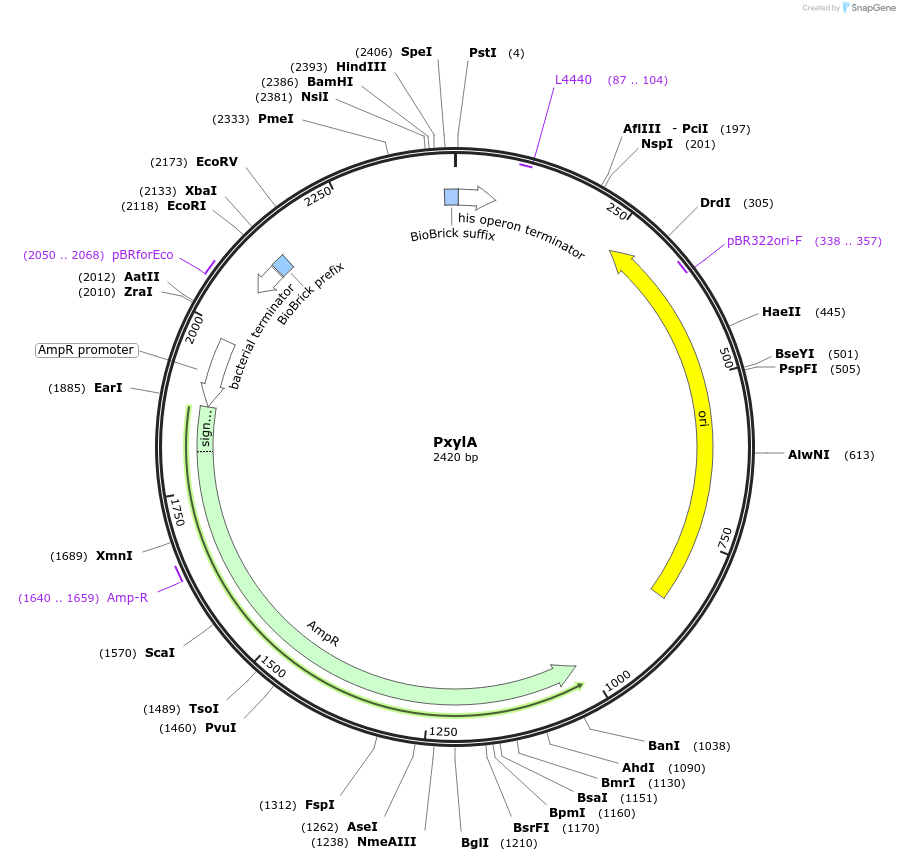

Backbone

  • Vector backbone
    pSB1A3
  • Backbone manufacturer
    iGEM
  • Total vector size (bp) 2420
  • Vector type
    Synthetic Biology ; Bacillus BioBrick Box

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    xylA promoter
  • Species
    B. subtilis
  • Insert Size (bp)
    265
  • Promoter xylA

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer na
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Xylose-inducible promoter.

For sequencing of insert, use the following primers:
fwd: TGCCACCTGACGTCTAAG
rev: ATTACCGCCTTTGAGTGA

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PxylA was a gift from Thorsten Mascher (Addgene plasmid # 55178 ; http://n2t.net/addgene:55178 ; RRID:Addgene_55178)

  • For your References section:

    The Bacillus BioBrick Box: generation and evaluation of essential genetic building blocks for standardized work with Bacillus subtilis. Radeck J, Kraft K, Bartels J, Cikovic T, Durr F, Emenegger J, Kelterborn S, Sauer C, Fritz G, Gebhard S, Mascher T. J Biol Eng. 2013 Dec 2;7(1):29. doi: 10.1186/1754-1611-7-29. 10.1186/1754-1611-7-29 PubMed 24295448
