PurposeLocalization: Centromere, Excitation: 487, Emission: 509
-
Depositing Lab
-
Publication
-
Sequence Information
Full plasmid sequence is not available for this item.
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 54248 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * | |
* Log in to view industry pricing.

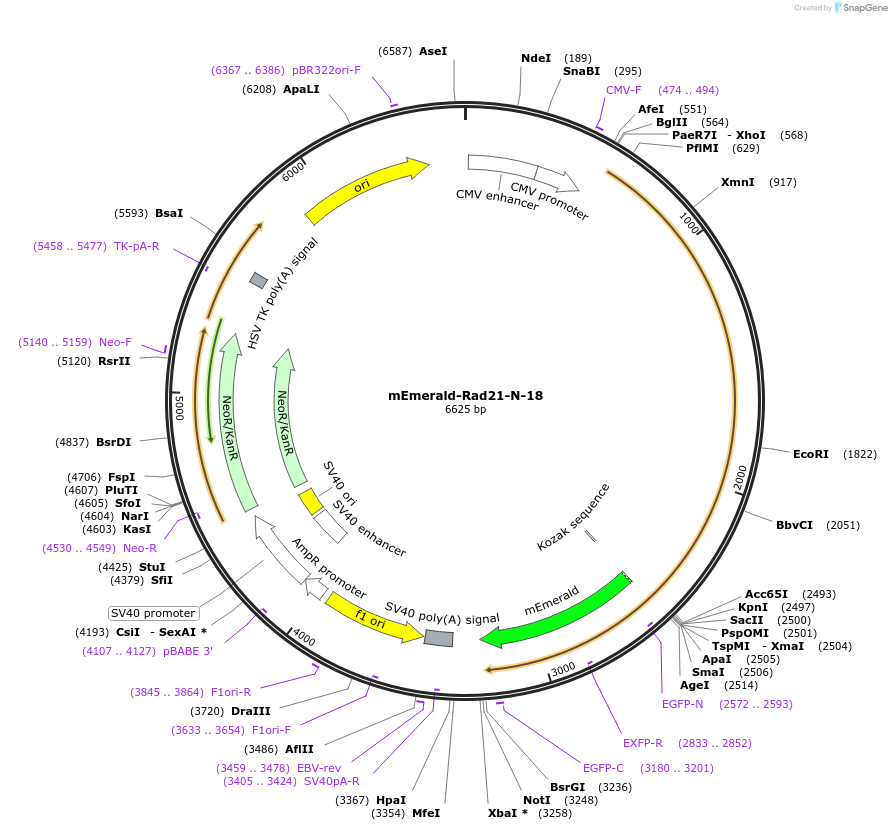

Backbone
-
Vector backbonemEmerald-N1
- Backbone size w/o insert (bp) 4750
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRad21
-
Alt nameNM_006265.2
-
SpeciesH. sapiens (human)
-
Entrez GeneRAD21 (a.k.a. CDLS4, HR21, HRAD21, MCD1, MGS, NXP1, SCC1, hHR21)
- Promoter CMV
-
Tag
/ Fusion Protein
- mEmerald (C terminal on backbone)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV-F
- 3′ sequencing primer SV40pA-R (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
. Excitation = 487; Emission = 509. Localization data: Centromere
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
mEmerald-Rad21-N-18 was a gift from Michael Davidson (Addgene plasmid # 54248 ; http://n2t.net/addgene:54248 ; RRID:Addgene_54248)
