pEU-Gm23
(Plasmid #53738)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 53738 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

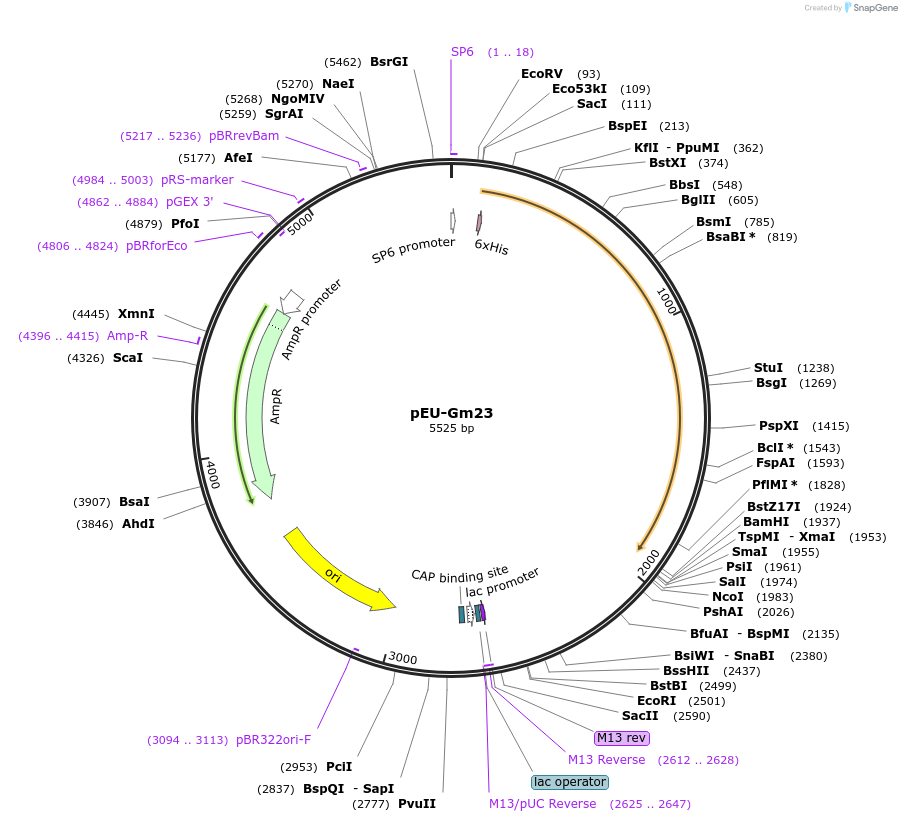

Backbone

  • Vector backbone
    pEU-E01
  • Backbone manufacturer
    Cell Free Sciences
  • Backbone size w/o insert (bp) 3747
  • Total vector size (bp) 5525
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    arginyl-tRNA synthetase
  • Alt name
    RARS
  • Species
    Glycine max (soybean)
  • Insert Size (bp)
    1824
  • GenBank ID
    FM209045
  • Promoter SP6
  • Tag / Fusion Protein
    • His tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SacI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer SP6
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEU-Gm23 was a gift from Gabor Igloi (Addgene plasmid # 53738 ; http://n2t.net/addgene:53738 ; RRID:Addgene_53738)
