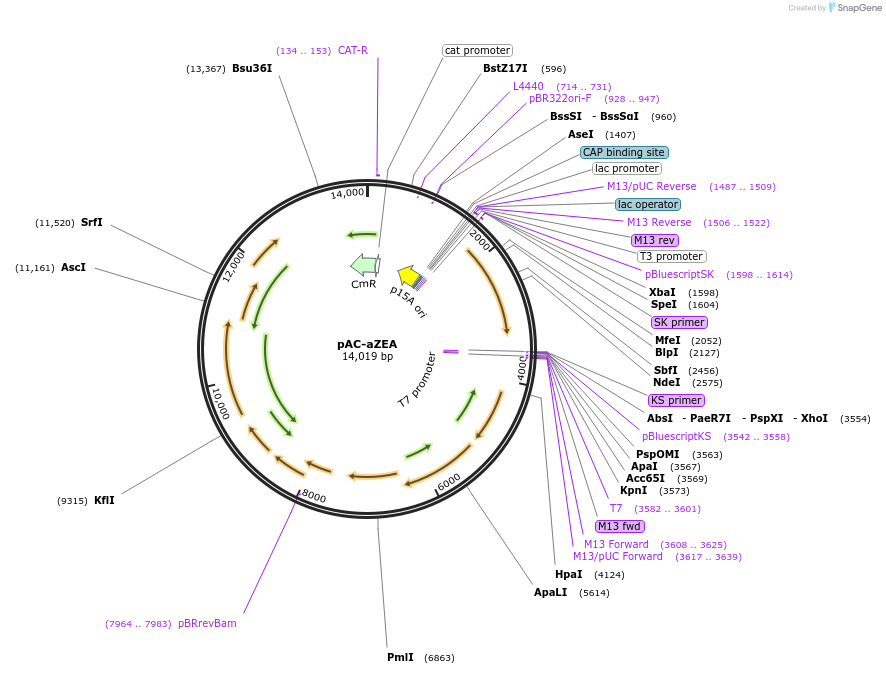

pAC-aZEA
(Plasmid #53286)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 53286 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAC-NEUR
  • Backbone manufacturer
    Francis X. Cunningham, Jr.
  • Backbone size w/o insert (bp) 11849
  • Total vector size (bp) 14019
  • Modifications to backbone
    An Arabidopsis thaliana cDNA encoding the lycopene epsilon-cyclase enzyme was excised from plasmid pY2F, together with most of the lac promoter, as an AseI-PvuII fragment of ca. 2.3 kB, and ligated in pAC-NEUR that had been digested with HindIII, blunted with the Klenow enzyme and then digested with AseI.
  • Vector type
    low copy number bacterial cloning vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Top10
  • Growth instructions
    Grow liquid cultures on a platform shaker at 28 degrees Celsius in darkness for 2-3 days for best alpha-zeacarotene production, or grow on agar plates at room temperature for 3-7 days.
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    lcyE
  • Alt name
    lycopene epsilon-cyclase
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    2284
  • GenBank ID
    U50738.1
  • Entrez Gene
    LUT2 (a.k.a. AT5G57030, LUTEIN DEFICIENT 2, LYCOPENE EPSILON-CYCLASE)
  • Promoter lac

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AseI (not destroyed)
  • 3′ cloning site HindIII (destroyed during cloning)
  • 5′ sequencing primer none
  • 3′ sequencing primer none
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For better yield of low copy number pAC-based plasmids, grow liquid cultures on a platform shaker at ca. 30 degrees Celsius. When cultures reach early stationary phase, dilute 2-fold with growth medium, add spectinomycin (150 mg/liter), and "amplify" for several hours before harvest. For plasmid selection and maintenance in E. coli, use chloramphenicol at 30 mg/liter.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAC-aZEA was a gift from Francis X Cunningham Jr (Addgene plasmid # 53286 ; http://n2t.net/addgene:53286 ; RRID:Addgene_53286)
  • For your References section:

    A portfolio of plasmids for identification and analysis of carotenoid pathway enzymes: Adonis aestivalis as a case study. Cunningham FX Jr, Gantt E. Photosynth Res. 2007 May;92(2):245-59. Epub 2007 Jul 17. 10.1007/s11120-007-9210-0 PubMed 17634749
