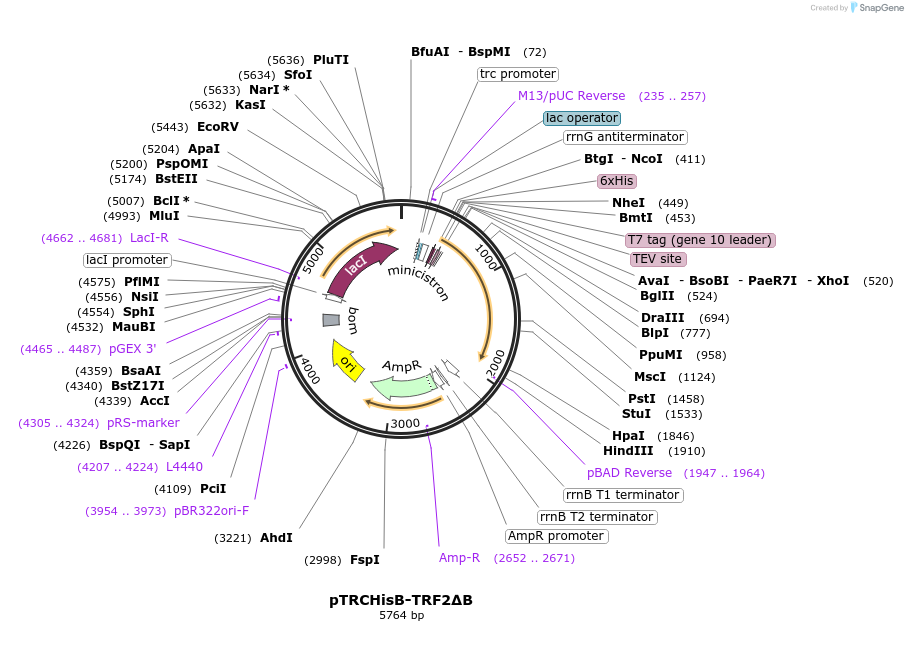

pTRCHisB-TRF2∆B
(Plasmid #53208)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 53208 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pTrcHisB
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 4404
  • Total vector size (bp) 5764
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TRF2 Delta Basic
  • Alt name
    TRF2
  • Alt name
    TERF2
  • Species
    H. sapiens (human)
  • Mutation
    contains amino acids 47-500
  • GenBank ID
    UniProtKB/Swiss-Prot: Q15554.2
  • Entrez Gene
    TERF2 (a.k.a. TRBF2, TRF2)
  • Promoter Trc
  • Tag / Fusion Protein
    • 6x His (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Not Provided (destroyed during cloning)
  • 3′ cloning site Not Provided (destroyed during cloning)
  • 5′ sequencing primer AAT CTG TGT GGG CAC TCG
  • 3′ sequencing primer CTT CTG CGT TCT GAT TTA ATC TG
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Plasmid is modified from vectors received from Dr. Eric Gilson used in his previously published studies.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that the correct TERF2 reference sequence for this plasmid is Q15554.2 (not the more recent Q15554.3 version).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTRCHisB-TRF2∆B was a gift from Jack Griffith (Addgene plasmid # 53208 ; http://n2t.net/addgene:53208 ; RRID:Addgene_53208)
  • For your References section:

    TRF1 and TRF2 differentially modulate Rad51-mediated telomeric and nontelomeric displacement loop formation in vitro. Bower BD, Griffith JD. Biochemistry. 2014 Sep 2;53(34):5485-95. doi: 10.1021/bi5006249. Epub 2014 Aug 21. 10.1021/bi5006249 PubMed 25115914
