Purpose(Empty Backbone) Expresses the S. pyogenes sgRNA from the 7SK promoter
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 53189 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
| Cloning Grade DNA | 53189-DNA.cg | 2 µg of cloning grade DNA in Tris buffer | 1 | $105 | |
Backbone
-
Vector backbonepzDonor
- Backbone size (bp) 3504
-
Vector typeMammalian Expression, CRISPR
- Promoter human 7SK
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Cloning Information
- Cloning method Restriction Enzyme
- 3′ sequencing primer M13 Reverse (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Information for Cloning Grade DNA (Catalog # 53189-DNA.cg) ( Back to top)
Purpose
Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.
Delivery
- Amount 2 µg
- Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
- Pricing $105 USD
- Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
ph7SK-gRNA was a gift from Charles Gersbach (Addgene plasmid # 53189 ; http://n2t.net/addgene:53189 ; RRID:Addgene_53189) -
For your References section:
Multiplex CRISPR/Cas9-based genome engineering from a single lentiviral vector. Kabadi AM, Ousterout DG, Hilton IB, Gersbach CA. Nucleic Acids Res. 2014 Aug 13. pii: gku749. 10.1093/nar/gku749 PubMed 25122746

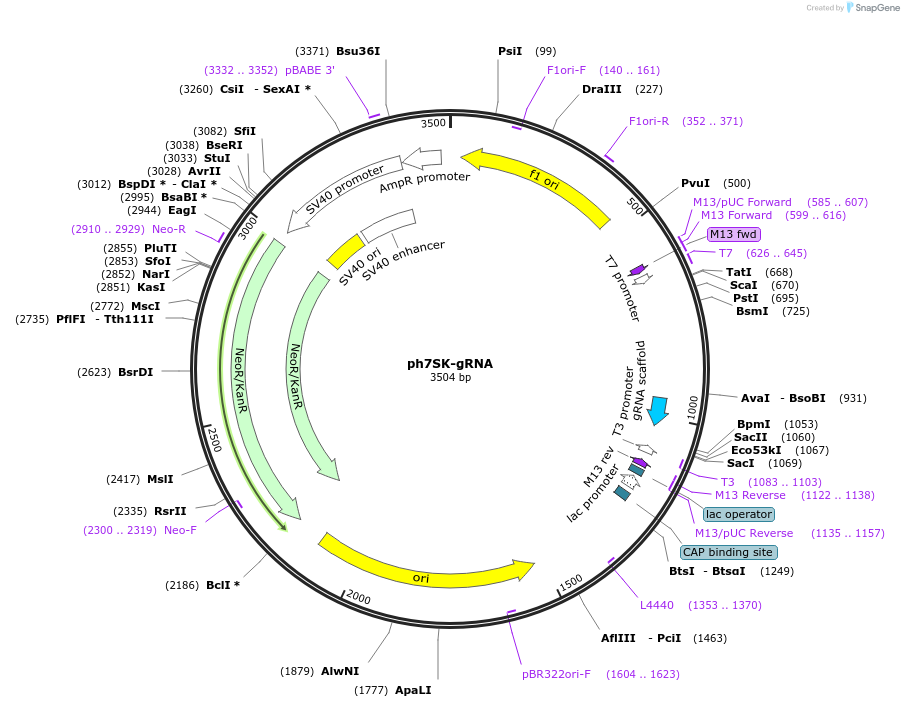

Map uploaded by the depositor.
