pTXG
(Plasmid #52280)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 52280 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

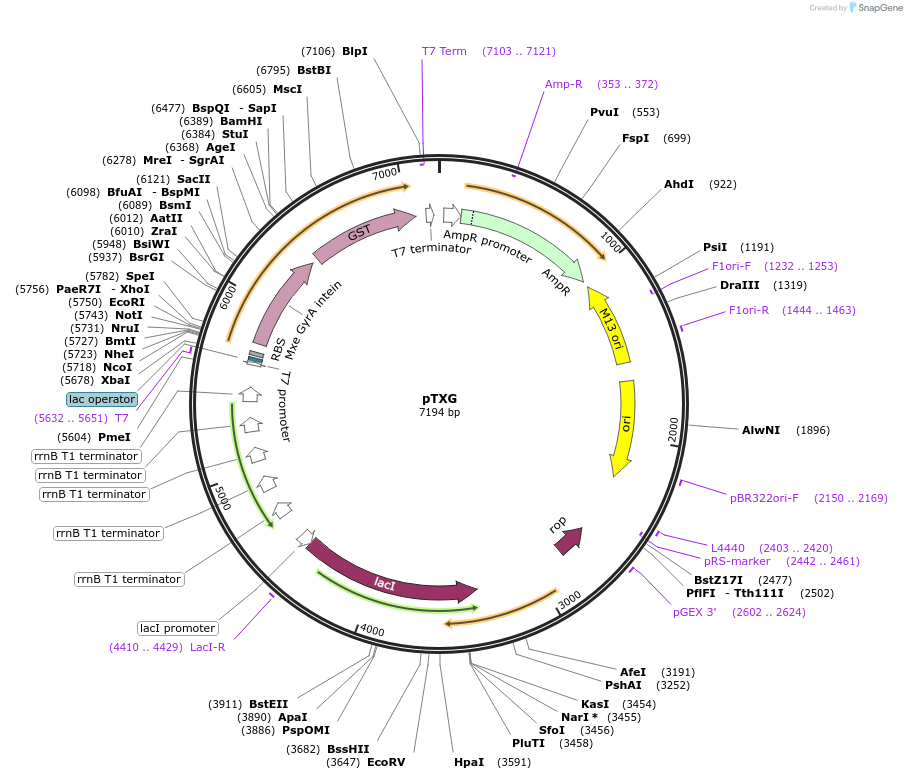

Backbone

  • Vector backbone
    pTXB3
  • Backbone manufacturer
    New England Biolabs
  • Backbone size (bp) 7194
  • Modifications to backbone
    CBD domain (StuI-BamHI fragment) replaced by GST (StuI-BglII fragment)
  • Vector type
    Bacterial Expression
  • Promoter T7
  • Tag / Fusion Protein
    • GyrA-intein-GST (C terminal on insert)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    In combination with a second vector for protein expression in BL21(DE3) cells, the selection pressure was reduced by half to 50 mg/L Ampicillin
  • Copy number
    High Copy

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTXG was a gift from Primo Schaer (Addgene plasmid # 52280 ; http://n2t.net/addgene:52280 ; RRID:Addgene_52280)

  • For your References section:

    Versatile Recombinant SUMOylation System for the Production of SUMO-Modified Protein. Weber AR, Schuermann D, Schar P. PLoS One. 2014 Jul 9;9(7):e102157. doi: 10.1371/journal.pone.0102157. eCollection 2014. 10.1371/journal.pone.0102157 PubMed 25007328
