CTGF-bio-His
(Plasmid #52028)

• Purpose: Expresses full-length Connective tissue growth factor precursor ectodomain in mammalian cells. C-terminal rat Cd4d3+4 tag, biotinylation sequence and His tag.
• Depositing Lab: Gavin Wright
• Publication: Sun et al Mol Cell Proteomics. 2015 Feb 23. pii: mcp.M114.046946.

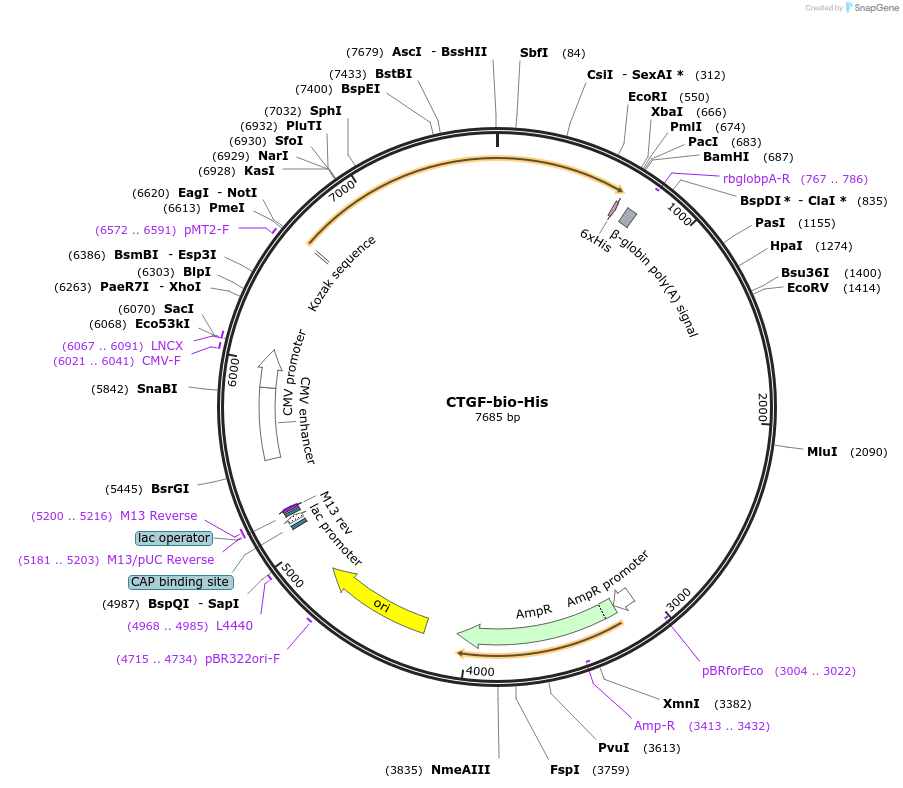

Backbone

• Vector backbone: pTT3
• Backbone manufacturer: Yves Durocher, NRC
• Backbone size w/o insert (bp): 6618
• Total vector size (bp): 7685
• Modifications to backbone: Rat CD4 d3+4, enzymatic biotinylation sequence, linker and His tag (CD4d3+4-BioLHis).
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): Top10
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: CTGF
• Alt name: Connective tissue growth factor precursor
• Species: H. sapiens (human)
• Insert Size (bp): 1067
• Entrez Gene: CCN2 (a.k.a. CTGF, HCS24, IBP-8, IGFBP8, NOV2)
• Promoter: CMV
• Tags / Fusion Proteins:
  • rat CD4 d3+4 (C terminal on backbone)
  • enzymatic biotinylation sequence (C terminal on backbone)
  • His tag (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NotI (not destroyed)
• 3′ cloning site: AscI (not destroyed)
• 5′ sequencing primer: CMV-fwd

Resource Information

• A portion of this plasmid was derived from a plasmid made by: Insert was chemically synthesised.

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Article ref 121
