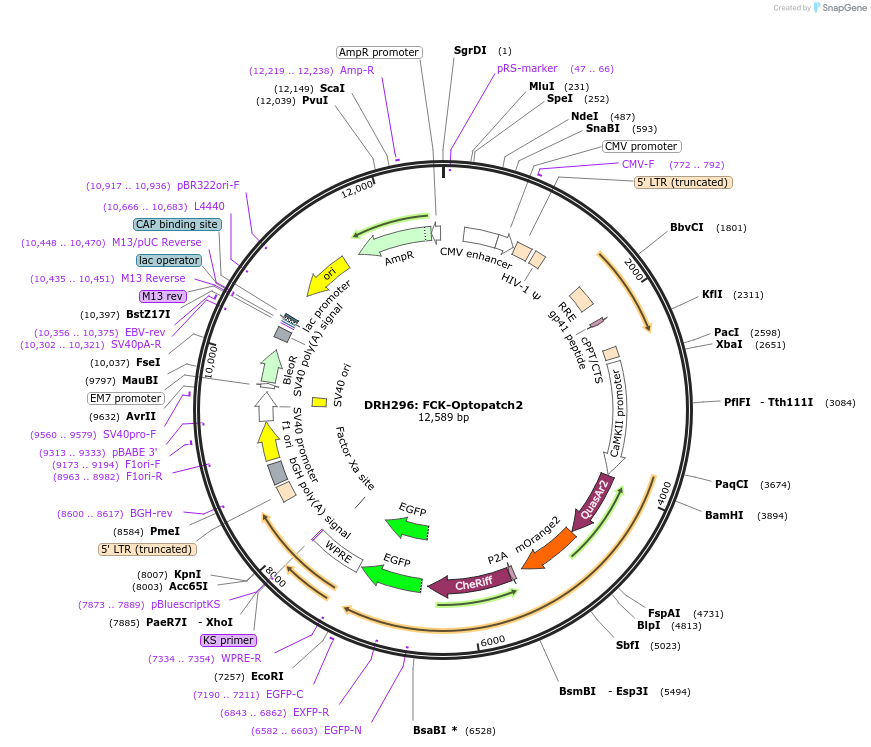

DRH296: FCK-Optopatch2
(Plasmid #51694)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 51694 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    FCK(1.3)
  • Backbone manufacturer
    Pavel Osten
  • Backbone size w/o insert (bp) 9236
  • Total vector size (bp) 12590
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Growth instructions
    Use recombinase-free E. coli (e.g., Invitrogen's Stbl3)
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Optopatch2
  • Species
    Synthetic
  • Insert Size (bp)
    3354
  • Promoter CaMKIIa

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer GCTCGTCAATCAAGCTGGTTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    DRH296: FCK-Optopatch2 was a gift from Adam Cohen (Addgene plasmid # 51694 ; http://n2t.net/addgene:51694 ; RRID:Addgene_51694)

  • For your References section:

    All-optical electrophysiology in mammalian neurons using engineered microbial rhodopsins. Hochbaum DR, Zhao Y, Farhi SL, Klapoetke N, Werley CA, Kapoor V, Zou P, Kralj JM, Maclaurin D, Smedemark-Margulies N, Saulnier JL, Boulting GL, Straub C, Cho YK, Melkonian M, Wong GK, Harrison DJ, Murthy VN, Sabatini BL, Boyden ES, Campbell RE, Cohen AE. Nat Methods. 2014 Aug;11(8):825-33. doi: 10.1038/nmeth.3000. Epub 2014 Jun 22. 10.1038/nmeth.3000 PubMed 24952910
