M2371 his3::ADE2 Disruptor Converter
(Plasmid #51671)

• Purpose: Yeast marker swap plasmid for converting HIS3 to ADE2
• Depositing Lab: David Stillman
• Publication: Voth et al Yeast. 2003 Aug;20(11):985-93.

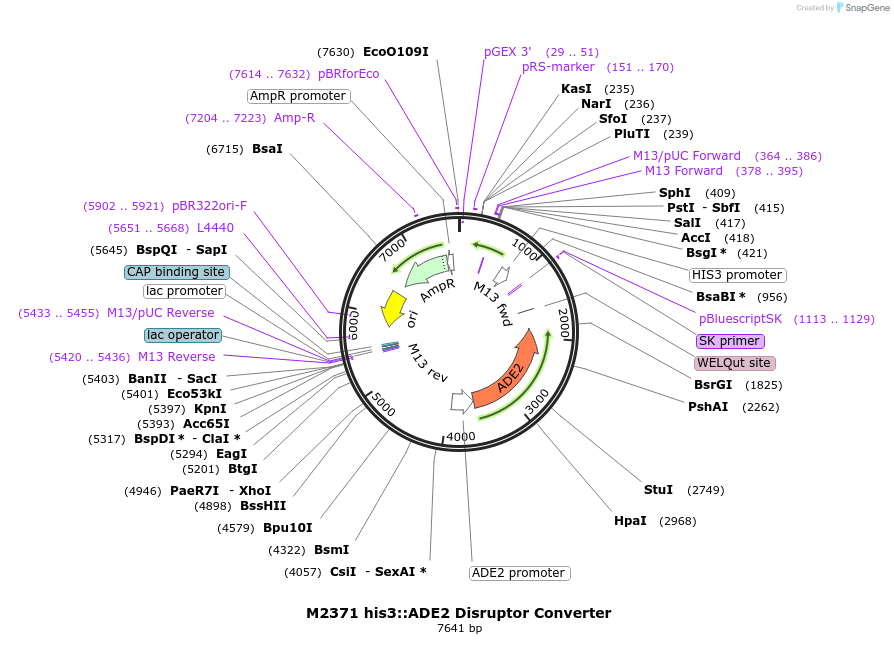

Backbone

• Vector backbone: pJJ215
• Total vector size (bp): 7639
• Vector type: Yeast Expression ; yeast marker swap
• Selectable markers: ADE2

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: ADE2
• Species: S. cerevisiae (budding yeast)
• Entrez Gene: ADE2 (a.k.a. YOR128C)
• Promoter: ADE2

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NotI (destroyed during cloning)
• 3′ cloning site: PstI (not destroyed)
• 5′ sequencing primer: M13-F20
• 3′ sequencing primer: M13R

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Plasmid was made by cutting pJJ215 with MscI and Nsi I and replacing the 570 bp MscI–Nsi I fragment with a 3.6 kb NotI (blunted with Klenow)–PstI fragment containing ADE2 from plasmid M1144. Plasmid M1144 contains a 3.6 kb BglII fragment (partial digest product) with ADE2 with BamHI linkers cloned into the BamHI site of Bluescript KS+.
