pET20b- hTPI Ile170Thr
(Plasmid #50725)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 50725 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

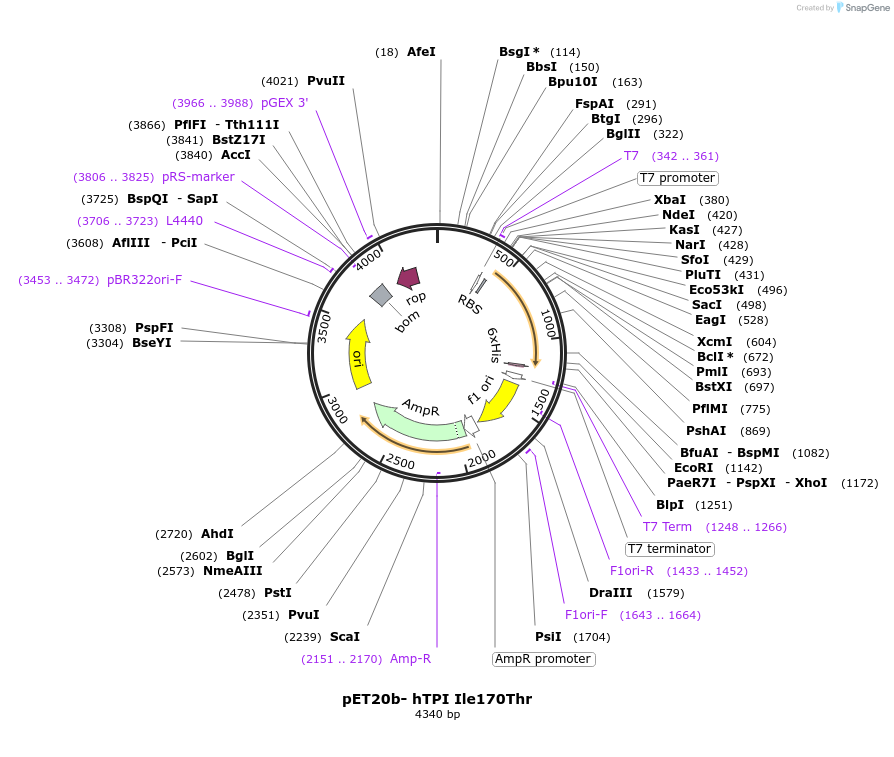

Backbone

  • Vector backbone
    pET20b
  • Backbone size w/o insert (bp) 3591
  • Total vector size (bp) 4340
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Triosephosphate isomerase 1
  • Alt name
    TPI1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    747
  • Mutation
    changed Isoleucine 170 to Threonine
  • GenBank ID
    NM_000365.5
  • Entrez Gene
    TPI1 (a.k.a. HEL-S-49, TIM, TPI, TPID)
  • Promoter T7
  • Tag / Fusion Protein
    • 6xHIS tag (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7 (TAATACGACTCACTATAGGG)
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET20b- hTPI Ile170Thr was a gift from Markus Ralser (Addgene plasmid # 50725 ; http://n2t.net/addgene:50725 ; RRID:Addgene_50725)

  • For your References section:

    Inhibition of triosephosphate isomerase by phosphoenolpyruvate in the feedback-regulation of glycolysis. Gruning NM, Du D, Keller MA, Luisi BF, Ralser M. Open Biol. 2014 Mar 5;4(3):130232. doi: 10.1098/rsob.130232. 10.1098/rsob.130232 PubMed 24598263
