EGFP-Rab5
(Plasmid #49888)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 49888 Standard format: Plasmid sent in bacteria as agar stab 1 $85

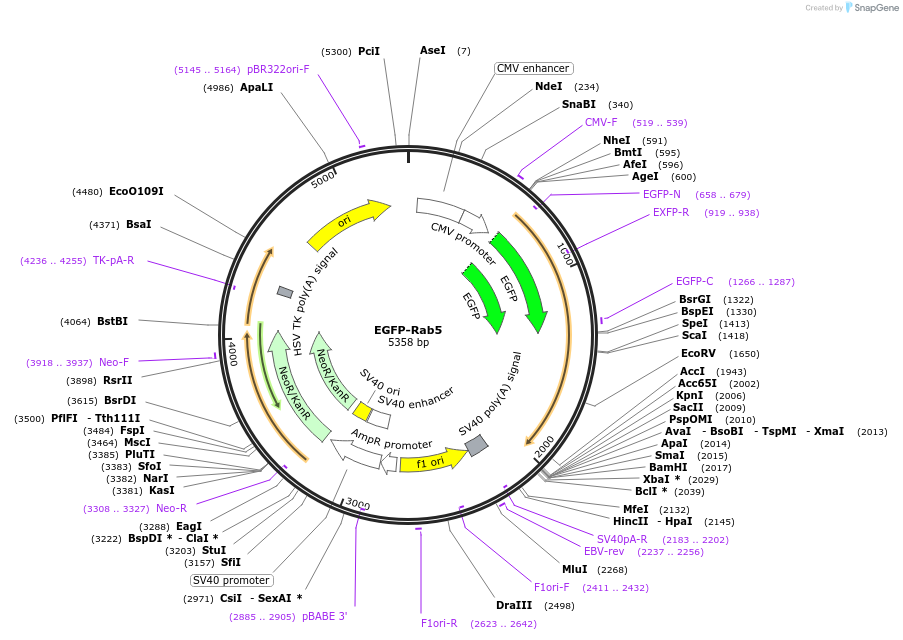

Backbone

  • Vector backbone
    EGFP C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5300
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Rab5
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    500
  • GenBank ID
    HUMRAB5A
  • Entrez Gene
    RAB5A (a.k.a. RAB5)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI/BglII (destroyed during cloning)
  • 3′ cloning site XhoI/SalI (destroyed during cloning)
  • 5′ sequencing primer EGFP C (CATGGTCCTGCTGGAGTTCGTG)
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    cDNA Rab5 derived from pCDNA3.1+Rab5 (purchased from MIssouri S&T cDNA Resource Center)
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EGFP-Rab5 was a gift from Marci Scidmore (Addgene plasmid # 49888)
