pVRa31_2963
(Plasmid
#49688)
-
Depositing Lab
-

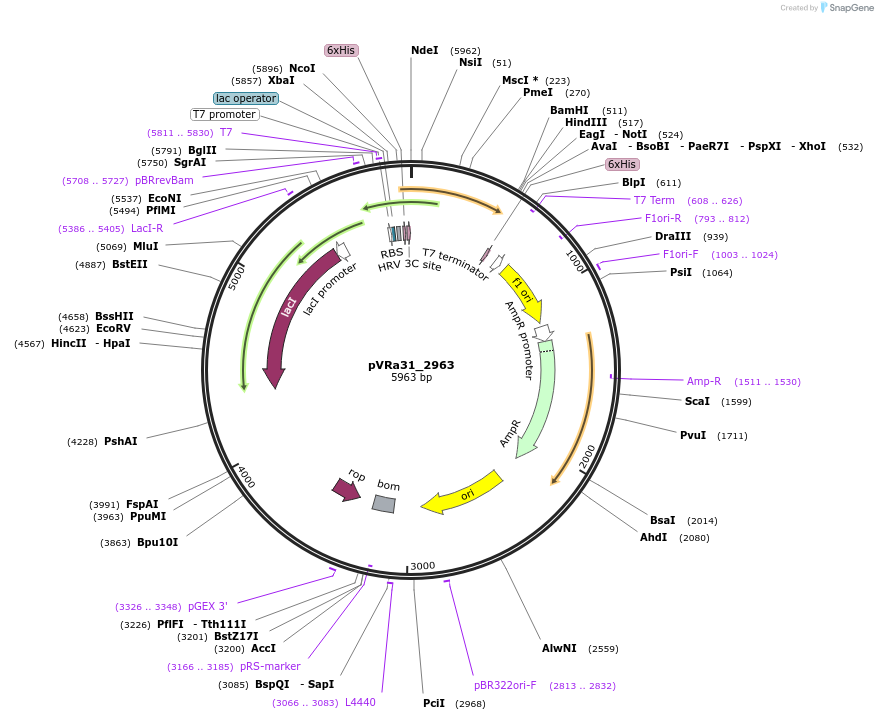

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 49688 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepVRa
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH10B
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameECF31_2963
-
SpeciesIdiomarina baltica OS145
-
MutationCodon optimized for E.coli
- Promoter pT7-lacO
-
Tag
/ Fusion Protein
- His6-PreScission (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer CGATATAGGCGCCAGCAAC
- 3′ sequencing primer CAGCAGCCAACTCAGCTTC (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pVRa31_2963 was a gift from Christopher Voigt (Addgene plasmid # 49688 ; http://n2t.net/addgene:49688 ; RRID:Addgene_49688) -
For your References section:
Design of orthogonal genetic switches based on a crosstalk map of sigmas, anti-sigmas, and promoters. Rhodius VA, Segall-Shapiro TH, Sharon BD, Ghodasara A, Orlova E, Tabakh H, Burkhardt DH, Clancy K, Peterson TC, Gross CA, Voigt CA. Mol Syst Biol. 2013 Oct 29;9:702. doi: 10.1038/msb.2013.58. 10.1038/msb.2013.58 PubMed 24169405
