EGFP-Rab30T23N
(Plasmid #49609)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 49609 Standard format: Plasmid sent in bacteria as agar stab 1 $85

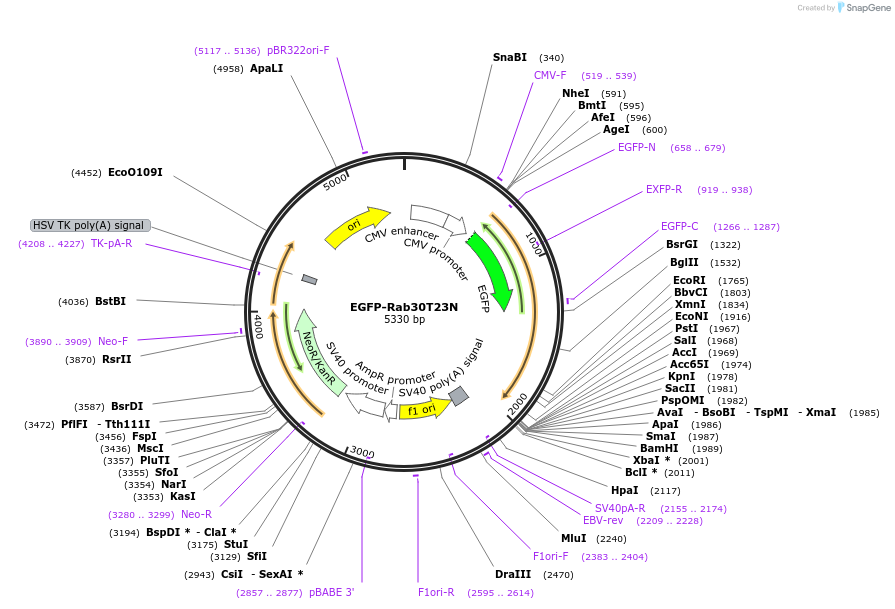

Backbone

  • Vector backbone
    EGFP C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5300
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Rab30T23N
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    600
  • Mutation
    Threonine 23 to Asparagine
  • GenBank ID
    AF498956
  • Entrez Gene
    RAB30
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI/BglII (destroyed during cloning)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer EGFP C (CATGGTCCTGCTGGAGTTCGTG)
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Rab30 derived from pCDNA3.1+HA-Rab30 purchased from Missouri S&T cDNA Resource Center

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EGFP-Rab30T23N was a gift from Marci Scidmore (Addgene plasmid # 49609)
