Purposeexpresses EGFP-Rab2 in mammalian cells
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 49541 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

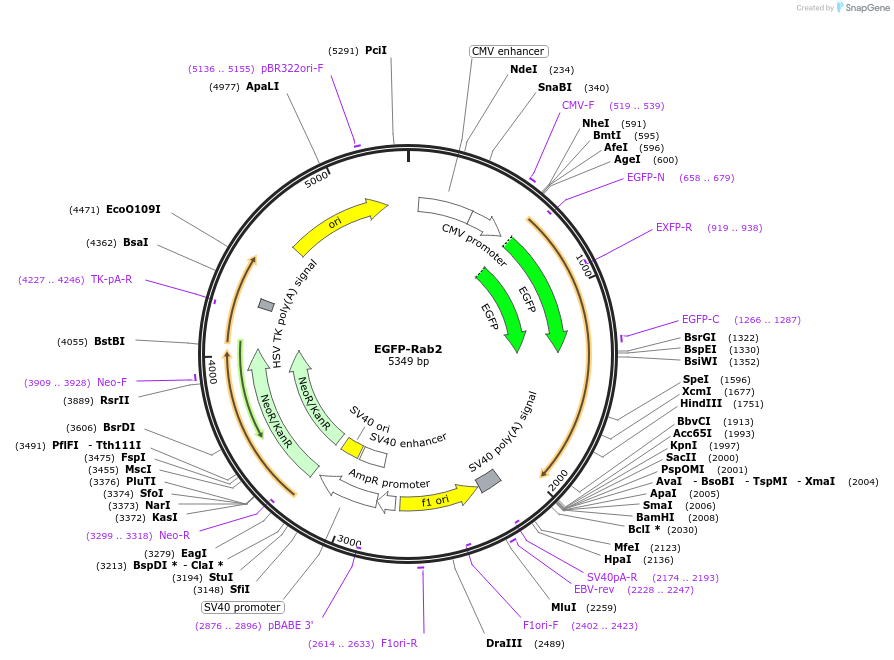

Backbone
-
Vector backboneEGFP C1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 5330
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRab2A
-
SpeciesH. sapiens (human)
-
Insert Size (bp)630
-
GenBank IDAF498930
-
Entrez GeneRAB2A (a.k.a. LHX, RAB2)
- Promoter CMV
-
Tag
/ Fusion Protein
- EGFP (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI/BglII (destroyed during cloning)
- 3′ cloning site XhoI/SalI (destroyed during cloning)
- 5′ sequencing primer EGFP C (CATGGTCCTGCTGGAGTTCGTG) (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byRab2A cDNA derived from pCDNA3.1-Rab2A purchased from Missouri S&T cDNA Resource Center
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
EGFP-Rab2 was a gift from Marci Scidmore (Addgene plasmid # 49541) -
For your References section:
The Anaplasma phagocytophilum-occupied vacuole selectively recruits Rab-GTPases that are predominantly associated with recycling endosomes. Huang B, Hubber A, McDonough JA, Roy CR, Scidmore MA, Carlyon JA. Cell Microbiol. 2010 Sep 1;12(9):1292-307. doi: 10.1111/j.1462-5822.2010.01468.x. Epub 2010 Mar 25. 10.1111/j.1462-5822.2010.01468.x PubMed 20345488
