pEMS1985
(Plasmid #49116)

• Purpose: The plasmid contains the Pleaides (Ple) MiniPromoter Ple155 derived from the human PCP2 gene and designed for expression in ON Bipolar cells of the retina.
• Depositing Lab: Elizabeth Simpson
• Publication: Korecki et al Gene Ther. 2021 Feb 2. pii: 10.1038/s41434-021-00227-z. doi: 10.1038/s41434-021-00227-z.

Backbone

• Vector backbone: AAV2
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): Stbl2
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: ssAAV-Ple155-iCre
• Alt name: iCre
• Species: Synthetic
• Promoter: MiniPromoter Ple155 from the human PCP2 gene

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Unknown (unknown if destroyed)
• 3′ cloning site: Unknown (unknown if destroyed)
• 5′ sequencing primer: -

Resource Information

• Supplemental Documents:
  • pEMS1985 Genbank file
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Industry MTA

Depositor Comments

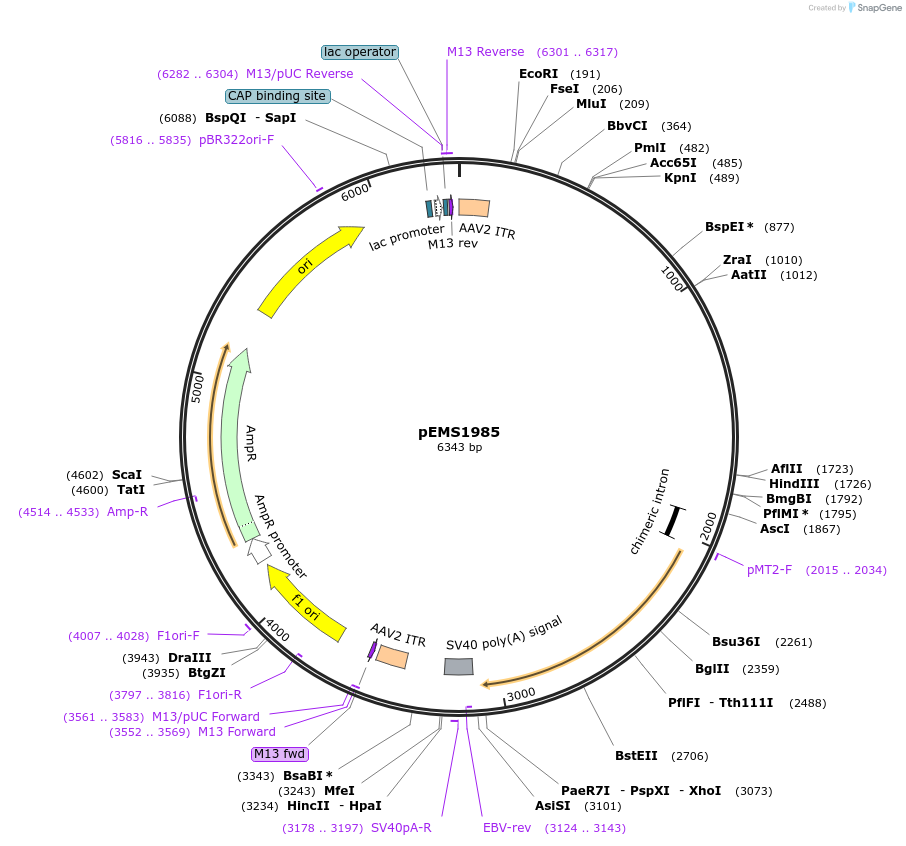

Please see the annotated GenBank file and the additional image file for the specific location of the minipromoter in this plasmid.

Additional References:

1 Korecki, A. J. et al. Twenty-Seven Tamoxifen-Inducible iCre-Driver Mouse Strains for Eye and Brain, Including Seventeen Carrying a New Inducible-First Constitutive-Ready Allele. Genetics 211, 1155-1177 (2019).

2 de Leeuw, C. N. et al. rAAV-Compatible MiniPromoters for Restricted Expression in the Brain and Eye. Molecular Brain 9, 52 (2016).

3 Scalabrino, M. L. et al. Intravitreal delivery of a novel AAV vector targets ON bipolar cells and restores visual function in a mouse model of complete congenital stationary night blindness. Hum Mol Genet 24, 6229-6239, doi:10.1093/hmg/ddv341, ddv341 [pii] (2015).

4 de Leeuw, C. N. et al. Targeted CNS delivery using human MiniPromoters and demonstrated compatibility with adeno-associated viral vectors. Mol Ther Methods Clin Dev 1, 1-15 (2014).
