pUC19 gene 60
(Plasmid #49090)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 49090 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

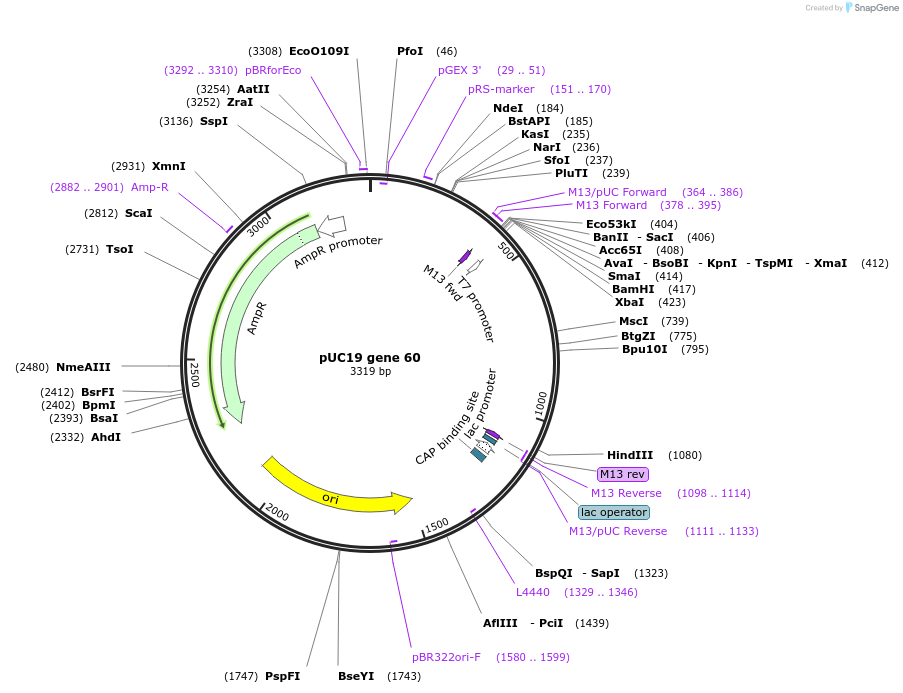

Backbone

  • Vector backbone
    pUC19
  • Backbone size w/o insert (bp) 2662
  • Total vector size (bp) 3319

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    JM109
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Bacteriophage T4 gene 60
  • Species
    Enterobacteria phage T4
  • Insert Size (bp)
    657
  • GenBank ID
    M19728.1
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer tgtaaaacgacggccagt
  • 3′ sequencing primer caggaaacagctatgaccatg
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUC19 gene 60 was a gift from Nils Walter (Addgene plasmid # 49090 ; http://n2t.net/addgene:49090 ; RRID:Addgene_49090)

  • For your References section:

    Secondary structure of bacteriophage T4 gene 60 mRNA: implications for translational bypassing. Todd GC, Walter NG. RNA. 2013 May;19(5):685-700. doi: 10.1261/rna.037291.112. Epub 2013 Mar 14. 10.1261/rna.037291.112 PubMed 23492219
