pGL3 Pro E2
(Plasmid
#48749)
-
PurposeExpression of luciferase driven by mPer2 promoter fragment containing E-box2 (bases -112 to +98 with respect to transcription start site at +1) and SV40 promoter (backbone)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 48749 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

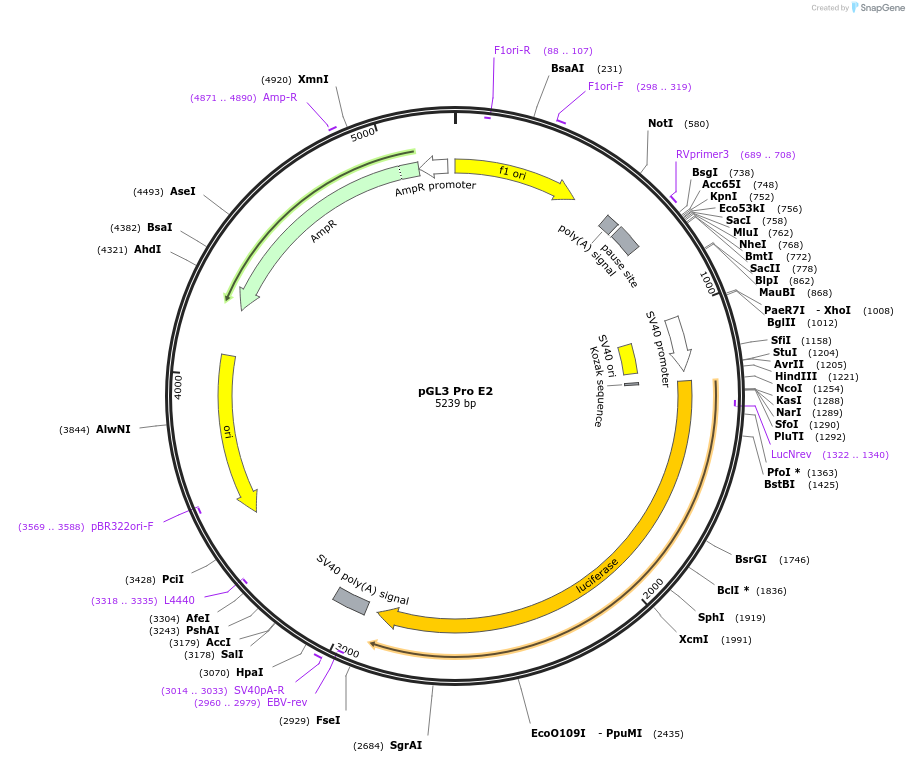

Backbone
-
Vector backbonepGL3-Promoter
-
Backbone manufacturerPromega
- Backbone size w/o insert (bp) 5010
-
Vector typeLuciferase
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemPer2 promoter/enhancer region containing E-box2 (-112 to +98)
-
SpeciesM. musculus (mouse)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Minor sequencing discrepancies may exist between the mPer2 promoter reference sequence and Addgene's sequencing results, but do not affect the function of the plasmid.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGL3 Pro E2 was a gift from Joseph Takahashi (Addgene plasmid # 48749 ; http://n2t.net/addgene:48749 ; RRID:Addgene_48749) -
For your References section:
A noncanonical E-box enhancer drives mouse Period2 circadian oscillations in vivo. Yoo SH, Ko CH, Lowrey PL, Buhr ED, Song EJ, Chang S, Yoo OJ, Yamazaki S, Lee C, Takahashi JS. Proc Natl Acad Sci U S A. 2005 Feb 15;102(7):2608-13. Epub 2005 Feb 7. 10.1073/pnas.0409763102 PubMed 15699353
