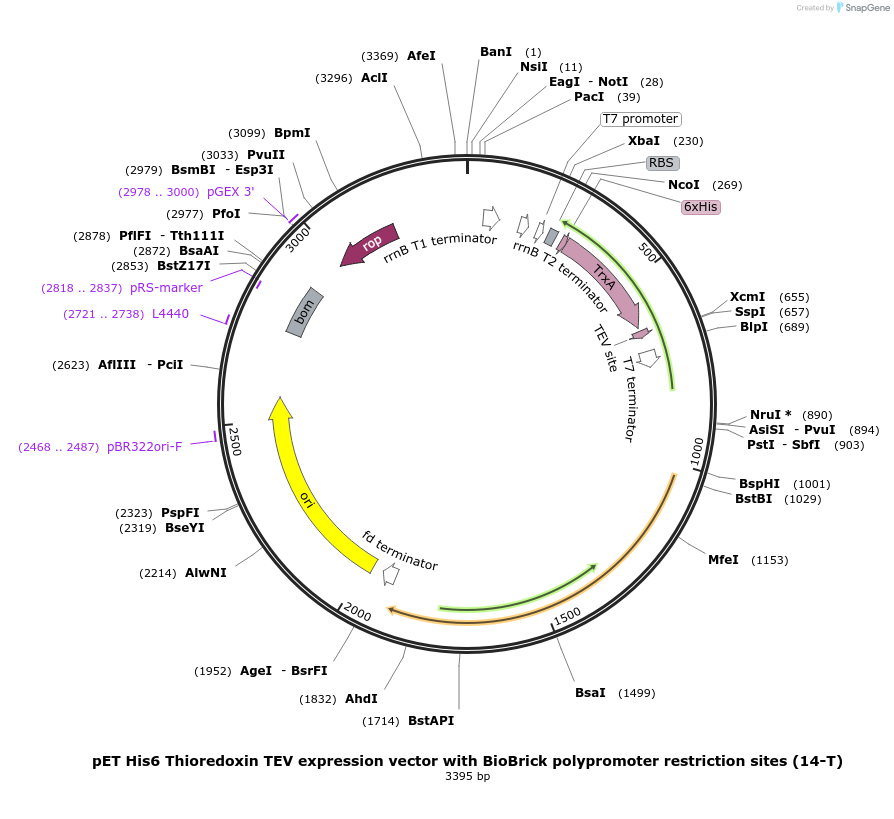

pET His6 Thioredoxin TEV expression vector with BioBrick polypromoter restriction sites (14-T)
(Plasmid #48314)

• Purpose: (Empty Backbone)
• Depositing Lab: Scott Gradia
• Publication: Series-14: N-terminal Tag E.coli T7 Expression Vectors with Biobrick POLYPROMOTER Restriction Sites (unpublished)

Backbone

• Vector backbone: pET
• Backbone size (bp): 3395
• Vector type: Bacterial Expression
• Tags / Fusion Proteins:
  • His6 (N terminal on backbone)
  • Thioredoxin (N terminal on backbone)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): XL1 Blue
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: None

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

This plasmid is an empty vector to be used with a LIC cloning protocol.It has a TEV cleavable His6-Thioredoxin tag on the N-terminus and Amp resistance.

To clone into this vector, add LIC fusion tags to the 5' end of your PCR primers.
Forward - 5'TACTTCCAATCCAATGCA3'
Reverse - 5'TTATCCACTTCCAATGTTATTA3'

Linearize the plasmid with SspI and gel purify.

When digesting the DNA with T4 polymerase for LIC, use dCTP for insert and dGTP for vector. The Series-14 plasmids were designed to overcome the unpredictable expression patterns of genes from a polycistronic message. As mentioned in the Series-2 and Series-9 polycistronic sections, often genes that express well from a single gene mRNA do not express at the same level when placed in a polycistronic message next to other genes. This effect is likely due to mRNA structure interfering with access to the ribosome binding site. When we first made our polypromoter plasmids we found that we could clone multiple genes together in the Xl1-Blue cells so that each possess a T7 promoter, followed by a Lac operator, followed by a ribosome binding site, followed by your open reading frame (T7-LacO-RBS-yORF). However, these multi-gene polypromoter plasmids were unable to be transformed into an expression strain such as BL-21 or Rosetta2. We then figured out that we needed a RecAexpression strain (like Rosetta-Blues) to successfully propagate our polypromoter plasmids. Although Rosetta-Blue cells propagated our plasmids, expression was not so great and we didn't want to rely on a specialized strain to perform our expression. Finally, we figured out that it was the LacO that follows the T7 promoter that was causing plasmid instability in our polypromoter system. Removal of the LacO allowed us to express our polypromoter plasmids in Rosetta2 cells and we have had much success with these plasmids since. Much like our Series- 2 plasmids, the Series-14 plasmids are going to give a substantial amount of leaky expression. However, even with this shortcoming, we have found Series-14 to be a valuable resource for expressing multi-protein complexes. Cloning into the Series-14 plasmids and subsequent biobrick subcloning is performed exactly as described for the Series-9 plasmids.

More information on this vector can be found through http://qb3.berkeley.edu/qb3/macrolab/
