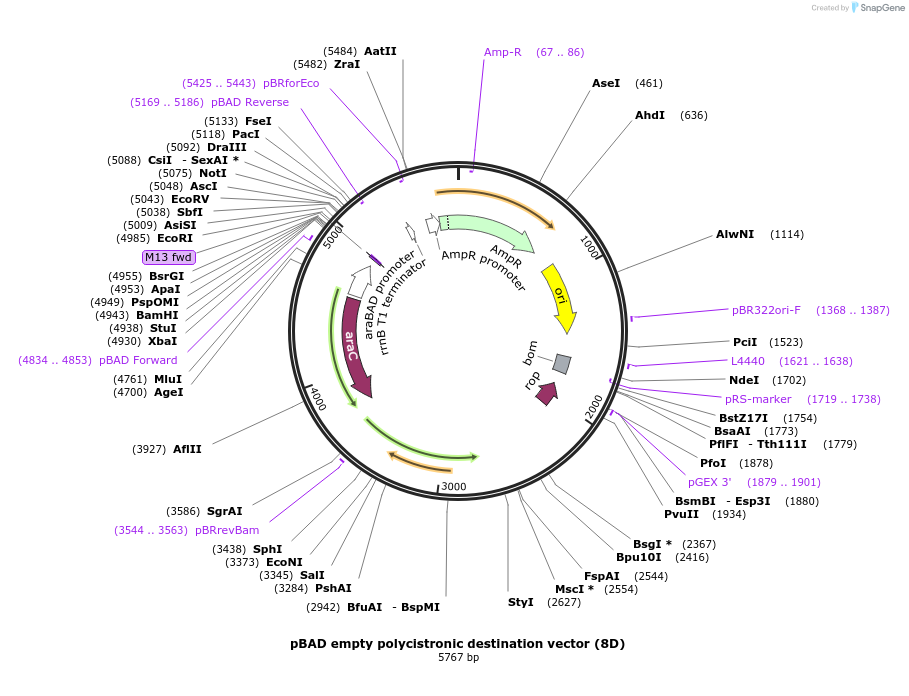

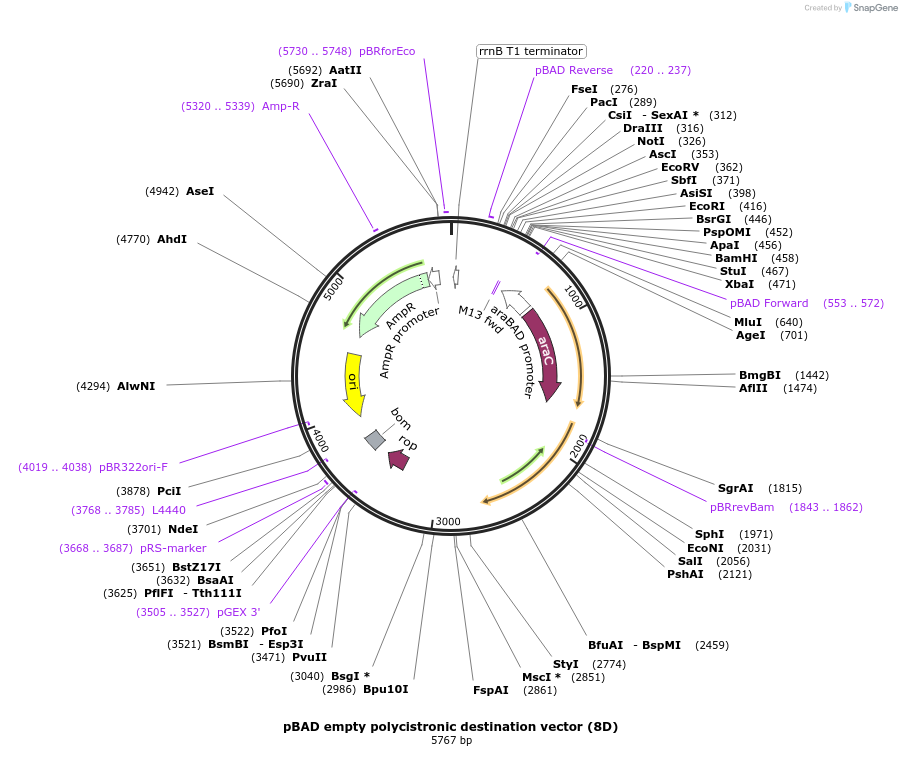

pBAD empty polycistronic destination vector (8D)
(Plasmid #48282)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 48282 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBAD
  • Backbone size (bp) 5767
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    None

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is an empty destination vector. It is a polycistronic vector that can express up to five genes at once. Genes must first be cloned into any of our 8-series transfer vectors (8BT,8CT,8UT), then subcloned into any of the five cassettes of the destination vector:

Cassette 1: BamHI/XbaI
Cassette 2: AsiSI/PspXI
Cassette 3: SbfI/AscI
Cassette 4: AdeI/NotI
Cassette 5: PacI/FseI

Please note that you must always insert your gene into the lowest cassette number first (e.g., if you're using cassettes 2 and 3, you must put your gene into cassette 2 first, then move on to cassette 3). You do not have to use all of the cassettes.

More information on this vector can be found through http://qb3.berkeley.edu/qb3/macrolab/

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD empty polycistronic destination vector (8D) was a gift from Scott Gradia (Addgene plasmid # 48282)
