pBAD His6 MBP TEV LIC transfer vector (8CT)
(Plasmid
#48280)
-
Purpose(Empty Backbone)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 48280 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

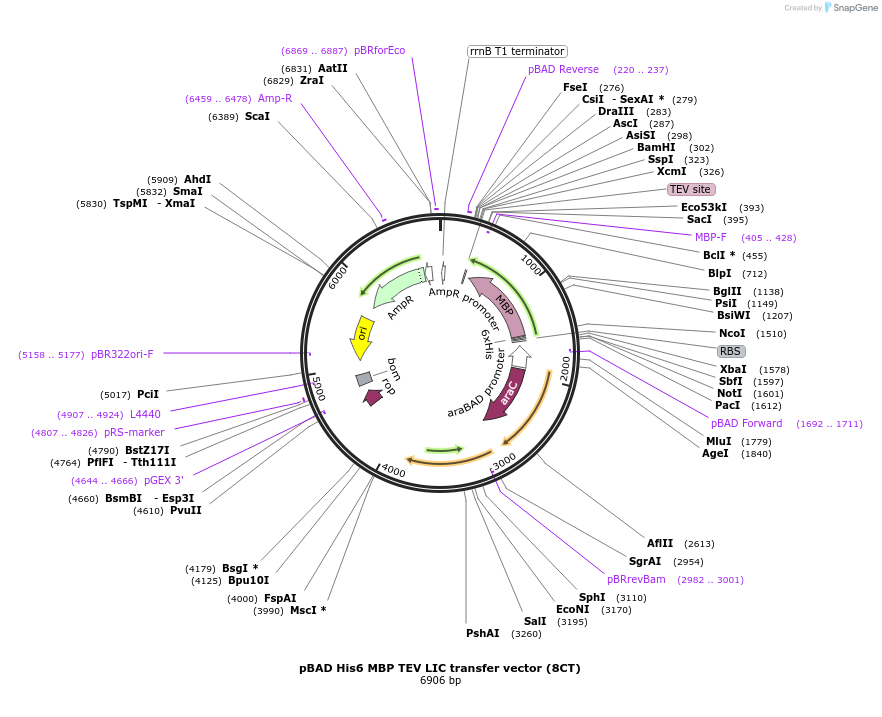

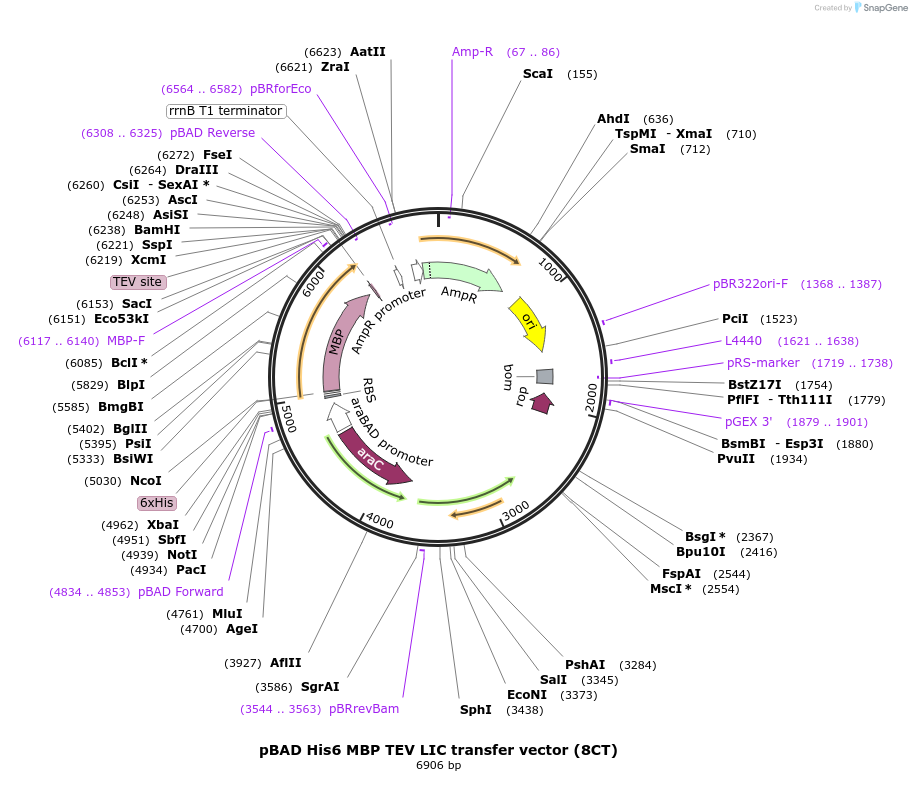

Backbone
-
Vector backbonepBAD
- Backbone size (bp) 6906
-
Vector typeBacterial Expression
-
Tags
/ Fusion Proteins
- His6 (N terminal on backbone)
- MBP (N terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberLow Copy
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer ARA F (5'cattctgtaacaaagcggga)
- 3′ sequencing primer ARA Rv (5'ctgttttatcagaccgcttc) (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This plasmid is an empty vector. Your gene can be inserted via LIC cloning.
8-series vectors are induced with L-arabinose for tighter control of expression. Glucose can be added to the medium to further inhibit leaky expression. The plasmid can be expressed in any E. coli line that lacks proteases.
8CT adds a TEV-cleavable His6-MBP tag to the N-terminus of your protein.
To clone into this vector, add LIC v1 tags to the 5' end of your PCR primers.
Forward - 5'TACTTCCAATCCAATGCA3'
Reverse - 5'TTATCCACTTCCAATGTTATTA3'
Linearize the plasmid with SspI and gel purify.
When digesting the DNA with T4 polymerase, use dCTP for insert and dGTP for vector.This vector is a transfer vector that can be used in conjunction with the 8D destination vector to create a polycistronic construct. More information on this vector can be found through http://qb3.berkeley.edu/qb3/macrolab/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBAD His6 MBP TEV LIC transfer vector (8CT) was a gift from Scott Gradia (Addgene plasmid # 48280)
