Purpose(Empty Backbone) Cumate-inducible expression of 3xFLAG-tagged fusion protein
-
Depositing Lab
-

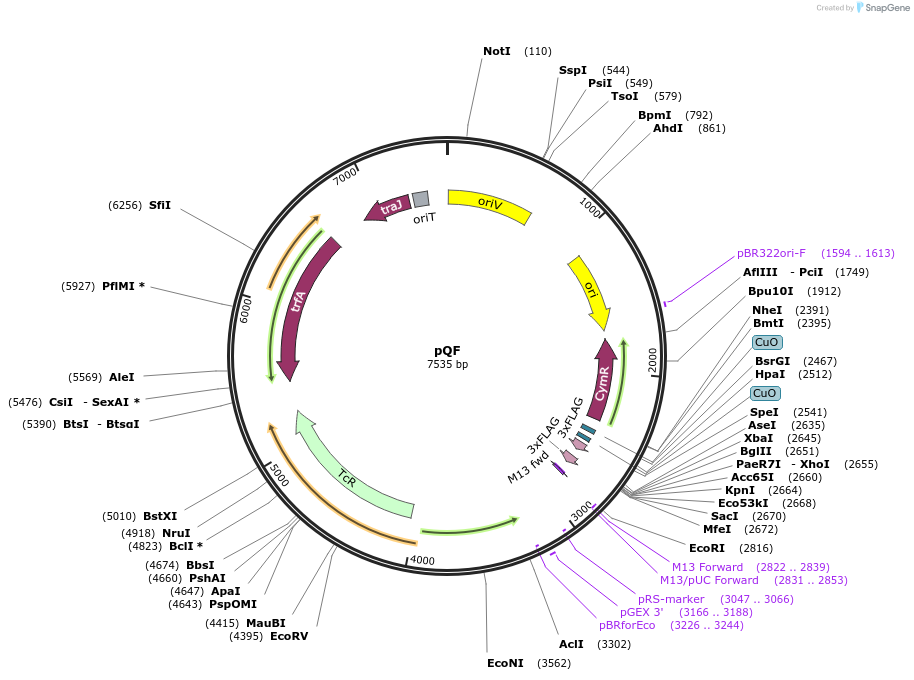

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 48095 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCM62
-
Backbone manufacturerCJ Marx (Harvard)
- Backbone size (bp) 6878
-
Modifications to backboneInsertion of cymR*, PQ5, MCS with N- and C-terminal 3xFLAG tags and a putative transcriptional terminator (T193*) between PciI-EcoRI sites of pCM62.
-
Vector typeBacterial Expression
- Promoter PQ5
-
Tags
/ Fusion Proteins
- 3xFLAG (N terminal on backbone)
- 3xFLAG (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Copy numberUnknown
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pQF was a gift from Julia Vorholt (Addgene plasmid # 48095 ; http://n2t.net/addgene:48095 ; RRID:Addgene_48095) -
For your References section:
Cumate-inducible gene expression system for sphingomonads and other Alphaproteobacteria. Kaczmarczyk A, Vorholt JA, Francez-Charlot A. Appl Environ Microbiol. 2013 Nov;79(21):6795-802. doi: 10.1128/AEM.02296-13. Epub 2013 Aug 30. 10.1128/AEM.02296-13 PubMed 23995928
