pOTTC475 - pAAV c-fos iRFP
(Plasmid #47906)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 47906 Standard format: Plasmid sent in bacteria as agar stab 1 $85

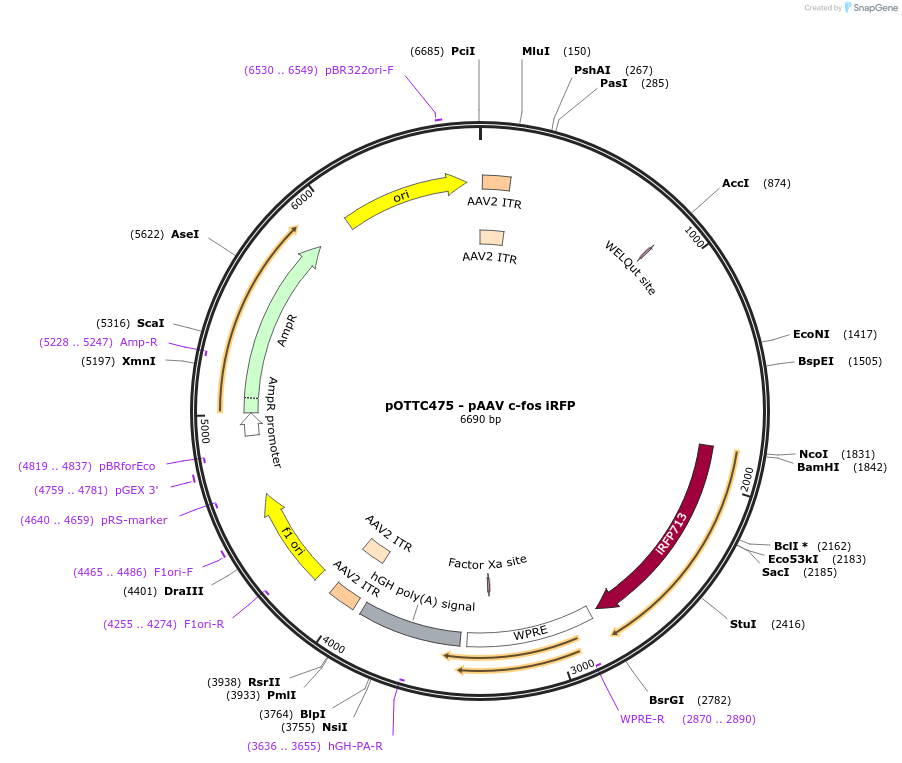

Backbone

  • Vector backbone
    pAAV c-fos eYFP
  • Backbone manufacturer
    NIDA OTTC
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Infrared fluorescent protein
  • Alt name
    iRFP
  • Species
    Rhodopseudomonas palustris
  • Insert Size (bp)
    951
  • GenBank ID
    JN247409.1
  • Promoter c-fos

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer c-fos int1 F625 (5'-GGAAGACATAAGCAGTCTCTGACCG )
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    the ORF for iRFP was obtained from Addgene (Plasmid 31857). the c-fos promoter was obtained from fosGFP (Barth et al, The Journal of Neuroscience, July 21, 2004•24(29):6466 – 6475).
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Note that the "N" in the depositor's sequences is legitimately ambiguous in both the Addgene stock and the depositor's original stock. This repeat region may vary in different preps of the plasmid, but it should not affect the plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pOTTC475 - pAAV c-fos iRFP was a gift from Brandon Harvey (Addgene plasmid # 47906 ; http://n2t.net/addgene:47906 ; RRID:Addgene_47906)
  • For your References section:

    Near-infrared fluorescent protein iRFP713 as a reporter protein for optogenetic vectors, a transgenic Cre-reporter rat, and other neuronal studies. Richie CT, Whitaker LR, Whitaker KW, Necarsulmer J, Baldwin HA, Zhang Y, Fortuno L, Hinkle JJ, Koivula P, Henderson MJ, Sun W, Wang K, Smith JC, Pickel J, Ji N, Hope BT, Harvey BK. J Neurosci Methods. 2017 Jun 1;284:1-14. doi: 10.1016/j.jneumeth.2017.03.020. Epub 2017 Apr 2. 10.1016/j.jneumeth.2017.03.020 PubMed 28380331
